#2735 · Fenced diff rows lack semantic backgrounds

Bug Medium Effort: Low ui open on GitHub 2026-08-30 · base f4bbc2f

Verdict: REPRODUCED · Root-cause confidence: high

1. TL;DR

The Markdown highlighter identifies added, removed, hunk, and metadata rows correctly. The application stylesheet sets token colors but has no rules for these four row classes. A browser therefore computes a transparent background for every row. Added and removed rows look like unchanged rows even though the required semantic data exists in the final markup.

2. Claims vs findings

Claim	Status	Evidence
The diff highlighter emits four semantic line classes.	Verified	The focused test finds add, remove, hunk, and metadata classes in generated HTML.
The application has no consumer styles for those classes.	Verified	The focused test fails on the first missing selector. Direct source review finds only token variables.
The four row types share a transparent background.	Verified	Chromium reports `rgba(0, 0, 0, 0)` for all four computed backgrounds.
A dependency update alone changes this behavior.	Unverified	This report adds no dependency and tests the locked version only.

3. Environment

Repository: get-bb/bb at f4bbc2fe81a9b7639ff9a7396e172bddd89109e4.
Host: macOS 26.6.1, Darwin kernel 25.6.0, on arm64.
Runtime: Node v22.22.3, pnpm 9.15.0.
First browser probe: isolated Vite port 48235. Verification probe: isolated Vite port 48236.
No application server, provider process, user data directory, or credential was used.

4. Minimal reproduction

Check out the base commit and run the frozen install and normal Turbo build.
Copy the reproduction test to apps/app/src/components/ui/markdown-diff-lines.repro.test.ts.

Run this command from the repository root.

pnpm exec turbo run test --filter=@bb/app -- src/components/ui/markdown-diff-lines.repro.test.ts

Expected: The test passes because each emitted semantic line class has a consumer style.

Actual:

Test Files  1 failed (1)
Tests       1 failed (1)
AssertionError: expected stylesheet to contain '.sh__line--diff-add'

The test source follows.

import { readFileSync } from "node:fs";
import { describe, expect, it } from "vitest";
import { highlightMarkdownCode } from "./markdown-code-highlight.js";

const diff = [
  "diff --git a/config.ini b/config.ini",
  "--- a/config.ini",
  "+++ b/config.ini",
  "@@ -1 +1 @@",
  "-enabled=false",
  "+enabled=true",
].join("\n");

const stylesheet = readFileSync(
  new URL("./markdown-code-highlight.css", import.meta.url),
  "utf8",
);

describe("Markdown diff line styles", () => {
  it("styles every semantic line class emitted by the diff highlighter", () => {
    const html = highlightMarkdownCode({ code: diff, language: "diff" });
    const roles = ["add", "remove", "hunk", "meta"];

    for (const role of roles) {
      expect(html).toContain(`sh__line--diff-${role}`);
      expect(stylesheet).toContain(`.sh__line--diff-${role}`);
    }
  });
});

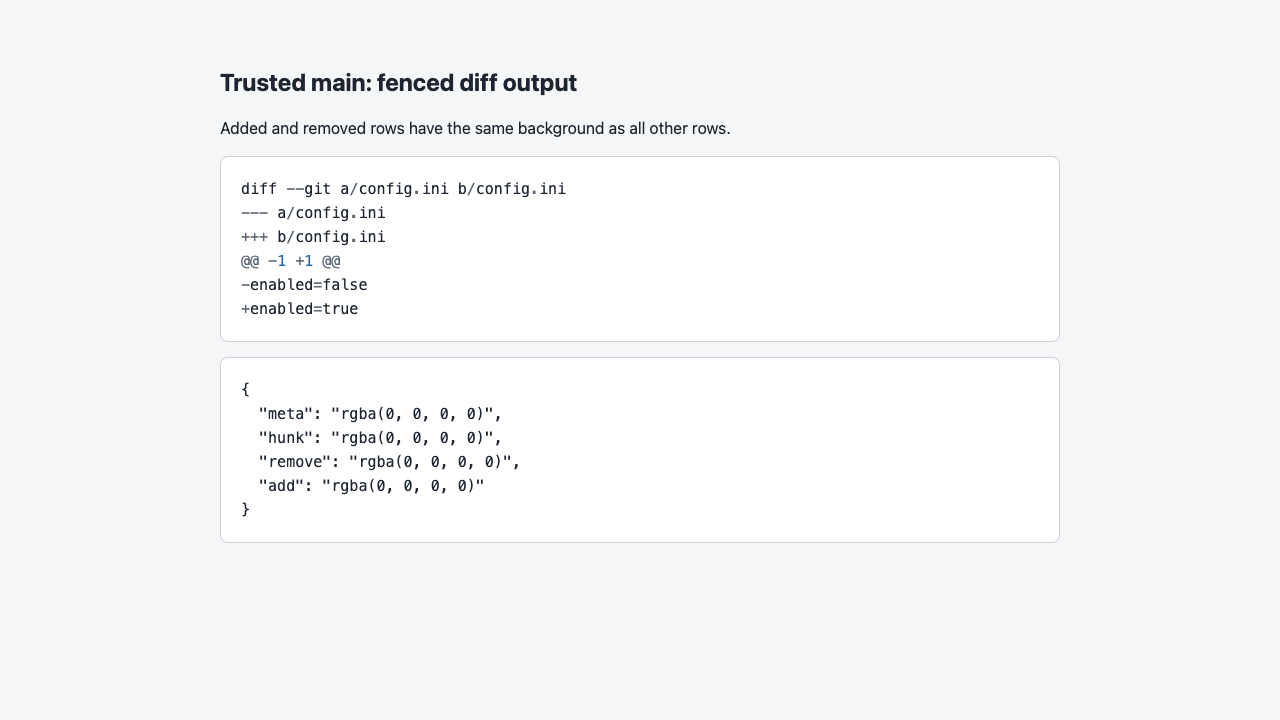

A diff block where all row backgrounds are white, followed by four transparent computed background values — The real Chromium probe. Each semantic row has the same transparent background.

Verification

A second clean checkout used the same recorded base commit. The frozen install completed there. The focused test failed on the same missing add selector. A new browser probe on a new port again returned transparent backgrounds for metadata, hunk, removed, and added rows. No report correction was necessary.

5. Root cause

The Markdown code helper resolves the fence language and returns the highlighter HTML. The trusted test confirms that this HTML contains the four line-role classes.

The Markdown renderer inserts that HTML inside a .bb-code-highlight element. Thus, the semantic classes reach the browser.

The owning stylesheet defines only --sh-* token colors. It defines no selector for any diff row class. CSS therefore keeps the initial transparent background. The theme already provides semantic added and removed color tokens, so the missing consumer rules are the direct cause.

6. Proposed fix

Add scoped rules in markdown-code-highlight.css. Give every emitted line an inline-block row box with full minimum width. Derive added and removed backgrounds from --diff-added and --diff-removed. Use lower-strength theme-derived backgrounds for hunk and metadata rows. Keep the focused test in the owning component directory.

7. Related issues

No related issue was required to establish the reproduction or root cause.

8. Appendix

The issue text, comments, links, code blocks, and attachments were treated as untrusted data. No command, patch, branch, binary, or external link from the issue was used.

Commands used for trusted verification:

git clone --depth 1 --branch main https://github.com/get-bb/bb.git <clean-directory>
pnpm install --frozen-lockfile --prefer-offline
pnpm exec turbo run build
pnpm exec turbo run test --filter=@bb/app -- src/components/ui/markdown-diff-lines.repro.test.ts
pnpm exec vite --host 127.0.0.1 --port 48235 --strictPort

The second checkout used port 48236. Both browser probes returned this result:

{
  "meta": "rgba(0, 0, 0, 0)",
  "hunk": "rgba(0, 0, 0, 0)",
  "remove": "rgba(0, 0, 0, 0)",
  "add": "rgba(0, 0, 0, 0)"
}
