#2519 · Plugin file openers built before `experimental_hostId` fail with “rpc input validation failed”

Bug Priority: Medium Effort: Unset plugins open on GitHub 2026-08-27 · base ad79bbb5ec90

Verdict: REPRODUCED · Root-cause confidence: high

1. TL;DR

BB adds experimental_hostId to a workspace source when a draft has no environment.

A strict opener from before this field rejects the complete RPC input before its handler runs.

The dispatcher returns HTTP 400, and the File Editor shows only the raw validation message.

The current opener accepts the same payload, so the failure needs an old strict contract.

2. Claims vs findings

Claim from the issue	Status	Evidence
An environment-free draft source gets `experimental_hostId`.	Verified	The app source adds the field at lines 186–198. The live default-host project sent it.
A strict pre-field opener rejects the request.	Verified	The isolated test returned HTTP 400 with “Unrecognized key: experimental_hostId.”
The failure comes from the plugin contract, not a stopped plugin.	Verified	The running File Editor returned `invalid_input`. A stopped plugin uses HTTP 503.
The file tab shows only `rpc input validation failed`.	Verified	The live application screenshot shows the bare red message.
The current opener accepts the identical payload.	Verified	After the current field returned, the same RPC request returned HTTP 200 and file content.
A normal environment-backed thread omits the field.	Verified	The app adds the field only when `environmentId` equals `null`.
The exact external `monaco` plugin has the stated old source handler.	Unverified	The issue gives no repository URL or commit. The equivalent strict contract reproduced the failure.
Removal of only the new field makes that external plugin return a handler error.	Unverified	The external plugin source was not available. This claim does not change the confirmed schema failure.

3. Environment

BB commit: ad79bbb5ec909524f8f281e62d860c588a86f332.
Latest checked main: fbc556d7777518be4fdae58268c415344de79462.
OS: Linux 7.0.0-29-generic, x86_64.
Node: 24.18.0. pnpm: 9.15.0.
Providers: Codex 0.150.1, Claude Code 2.1.247, Pi 0.84.3, Cursor 2026.08.11, and Grok 1.0.5.
App: localhost:11985. Server: localhost:19985. Host daemon: localhost:27985.
The isolated data directory was ~/.bb-dev/tmp-bb-report-2519-revise-k1o5uq-7ed158d9f8e7.
The revised live run used host host_nprkt8ejzt and project proj_mwmzugdgaj.

Full details: environment.txt.

4. Minimal reproduction

This reproduction changes only the current File Editor schema. The change makes it equal to the public pre-field schema.

Check out the base commit. Install dependencies and build BB.

git checkout ad79bbb5ec909524f8f281e62d860c588a86f332
pnpm install --frozen-lockfile --prefer-offline
pnpm exec turbo run build

Download the report artifacts. Check the patch before any source change.

report_base=https://get-bb.github.io/reports/issues/2519/repro
curl -fL "$report_base/legacy-schema.patch" -o /tmp/issue-2519-legacy-schema.patch
curl -fL "$report_base/file-opener-legacy-source-repro.test.ts" \
  -o apps/server/test/services/plugins/file-opener-legacy-source-repro.test.ts
git apply --check /tmp/issue-2519-legacy-schema.patch && \
  printf 'git apply --check: OK\n'

Verified output:

git apply --check: OK

Run the automated repro before the development application.
```
(cd apps/server && pnpm exec vitest run \
  test/services/plugins/file-opener-legacy-source-repro.test.ts)
```
The command exits with status 1 because the expected HTTP 200 response is HTTP 400.

Apply the legacy schema patch.

git apply /tmp/issue-2519-legacy-schema.patch

Start the isolated development application.

scripts/bb-dev-app current
eval "$(scripts/bb-dev-app env)"

Create a local Git project and register it on the isolated server.

qa_path=$(mktemp -d /tmp/issue-2519-qa-XXXXXX)
git -C "$qa_path" init
printf '{"name":"issue-2519-repro","private":true}\n' > "$qa_path/package.json"
git -C "$qa_path" add package.json
git -C "$qa_path" -c user.name=Repro -c user.email=repro@example.invalid commit -m init
host_id=$(pnpm --silent bb:dev machine list --json | jq -r '.[0].id')
test -n "$host_id" && test "$host_id" != null
payload=$(jq -n --arg p "$qa_path" --arg h "$host_id" \
  '{name:"qa",source:{type:"local_path",path:$p,hostId:$h}}')
project_id=$(curl -s -X POST "$BB_SERVER_URL/api/v1/projects" \
  -H 'content-type: application/json' -d "$payload" | jq -r .id)
test -n "$project_id" && test "$project_id" != null
pnpm --silent bb:dev plugin enable monaco-editor
printf 'host_id=%s\nproject_id=%s\n' "$host_id" "$project_id"

Verified output from the revised run:

monaco-editor@0.1.0  running
host_id=host_nprkt8ejzt
project_id=proj_mwmzugdgaj

Open a new draft in the qa project. Do not start an environment.
Press Ctrl+T. Search for package in the file search.
Click package.json. The file tab shows the RPC error.

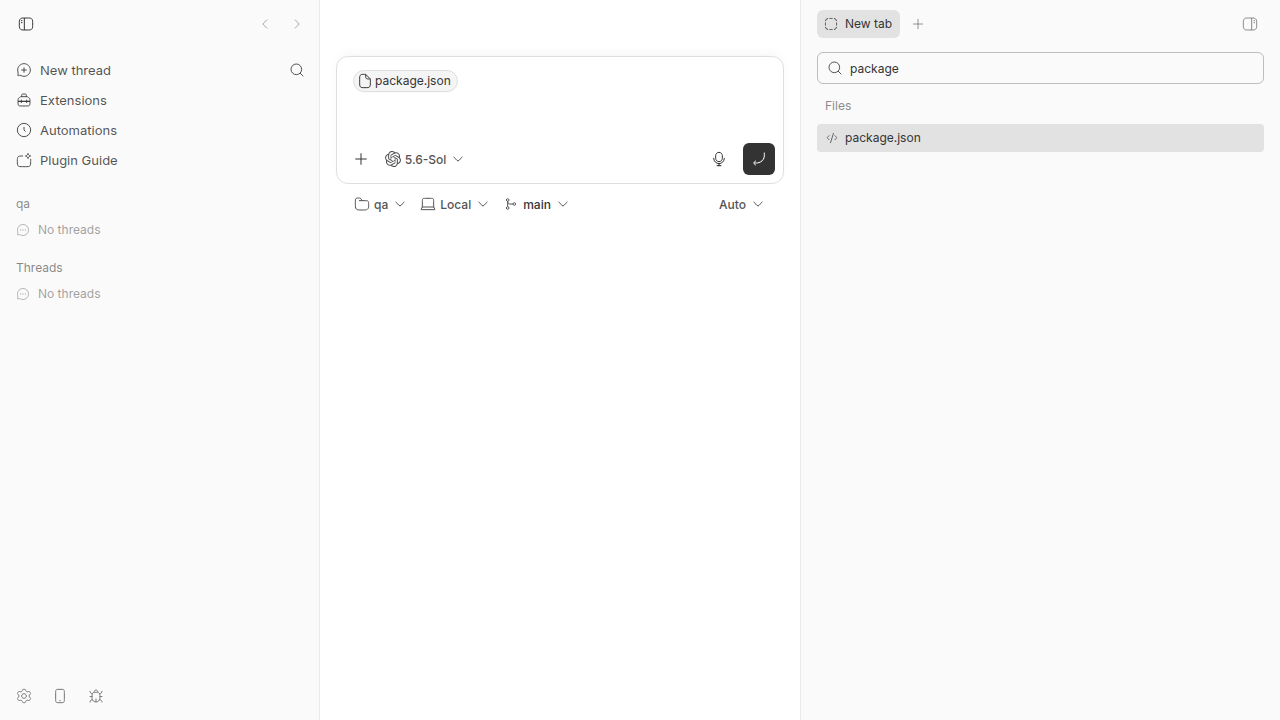

A draft composer and a file search result for package.json — Before the failure: the draft has no thread, and the file search has one workspace result.

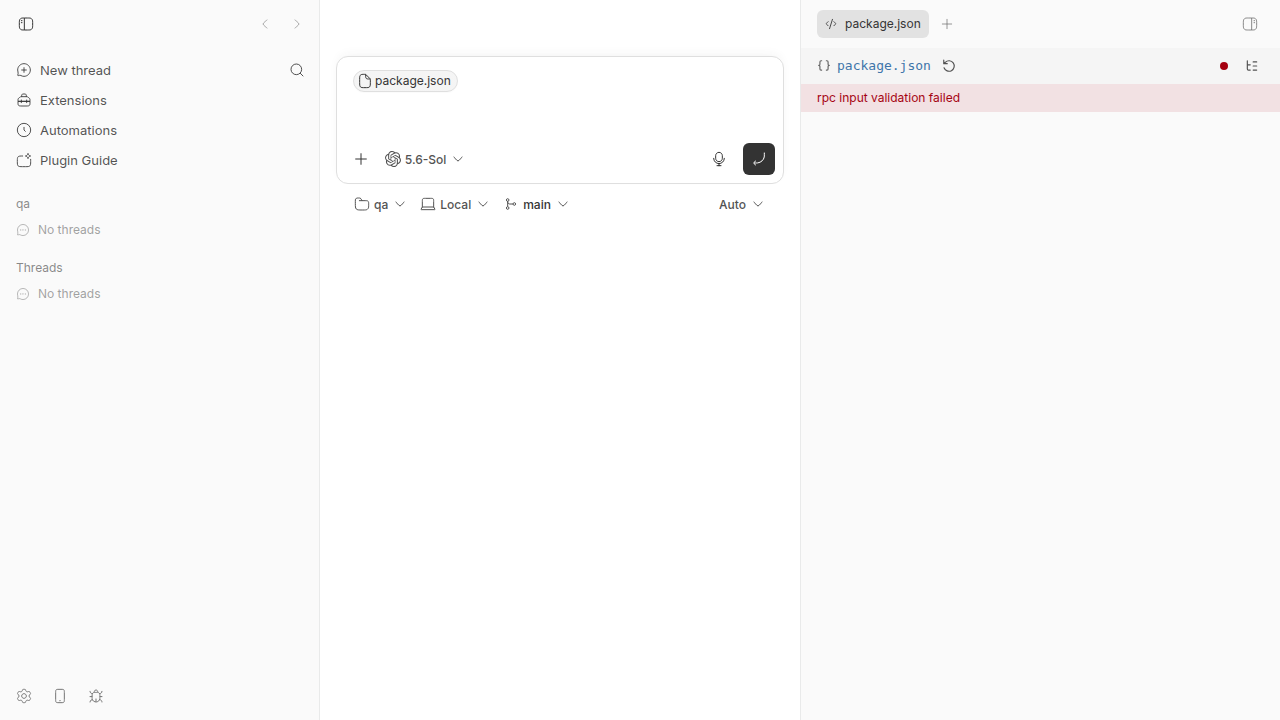

The File Editor tab with a red rpc input validation failed message — After the click: the File Editor tab shows only the raw validation message.

Exact RPC result

HTTP/1.1 400 Bad Request
content-type: application/json

{"ok":false,"error":{"code":"invalid_input","message":"rpc input validation failed","issues":[{"message":"Unrecognized key: \"experimental_hostId\"","path":["source"]}]}}

Restore the current schema and reload the plugin. The identical request returns HTTP 200.

git apply -R /tmp/issue-2519-legacy-schema.patch
pnpm --silent bb:dev plugin reload monaco-editor

See live-rpc-control.txt for both responses.

Automated failing repro

Save this file at apps/server/test/services/plugins/file-opener-legacy-source-repro.test.ts.

Step 3 runs this test before the development application starts.

This order prevents a native SQLite module from a different Node ABI from hiding the assertion.

pnpm exec vitest run test/services/plugins/file-opener-legacy-source-repro.test.ts

The expected file-open response is HTTP 200. The actual response is HTTP 400.

FAIL  |@bb/server| test/services/plugins/file-opener-legacy-source-repro.test.ts
AssertionError: expected { status: 400, … } to deeply equal { status: 200, … }

Received error code: invalid_input
Received issue: Unrecognized key: "experimental_hostId"

Test Files  1 failed (1)
Tests       1 failed (1)
Duration    3.74s

Repro file: file-opener-legacy-source-repro.test.ts.

Full repro test source

import { mkdir, writeFile } from "node:fs/promises";
import { join } from "node:path";
import { afterEach, beforeEach, describe, expect, it } from "vitest";
import {
  createTestAppHarness,
  type TestAppHarness,
} from "../../helpers/test-app.js";

const BASE = "http://127.0.0.1:3334";

const LEGACY_OPENER_SOURCE = `
  import { defineRpcContract } from "@get-bb/plugin-sdk";
  import { z } from "zod";

  const sourceSchema = z
    .object({
      kind: z.enum(["workspace", "host", "thread-storage"]),
      threadId: z.string().nullable(),
      environmentId: z.string().nullable(),
      projectId: z.string().nullable(),
    })
    .strict();

  const rpcContract = defineRpcContract({
    read: {
      input: z.object({ path: z.string().min(1), source: sourceSchema }).strict(),
      output: z.object({ kind: z.literal("text"), content: z.string() }),
    },
  });

  export default function plugin(bb: any) {
    bb.rpc.register(rpcContract, {
      read: async () => ({ kind: "text", content: "opened" }),
    });
  }
`;

describe("legacy file opener with a project-routed source", () => {
  let harness: TestAppHarness;

  beforeEach(async () => {
    harness = await createTestAppHarness({ devAppPort: 5173 });
    const rootDir = join(harness.config.dataDir, "legacy-opener");
    await mkdir(rootDir, { recursive: true });
    await writeFile(
      join(rootDir, "package.json"),
      JSON.stringify({
        name: "bb-plugin-legacy-opener",
        version: "0.1.0",
        bb: {
          name: "Legacy opener",
          description: "Strict contract from before experimental_hostId.",
          branding: { icon: "File" },
          server: "./server.ts",
        },
      }),
    );
    await writeFile(join(rootDir, "server.ts"), LEGACY_OPENER_SOURCE);
    const entry = await harness.pluginService.installPath(rootDir);
    expect(entry.status).toBe("running");
  });

  afterEach(async () => {
    await harness.pluginService.stop();
    await harness.cleanup();
  });

  it("opens a workspace file from a draft thread on its project host", async () => {
    const response = await harness.app.request(
      `${BASE}/api/v1/plugins/legacy-opener/rpc/read`,
      {
        method: "POST",
        headers: { "content-type": "application/json" },
        body: JSON.stringify({
          path: "package.json",
          source: {
            kind: "workspace",
            threadId: null,
            environmentId: null,
            projectId: "proj_qa",
            experimental_hostId: "host_qa",
          },
        }),
      },
    );

    expect({ status: response.status, body: await response.json() }).toEqual({
      status: 200,
      body: { ok: true, result: { kind: "text", content: "opened" } },
    });
  });
});

Saved output: vitest-output.txt.

An app-level test also proves that the draft route adds the unknown key.

See issue-2519.repro.test.ts and app-test-output.txt.

5. Root cause

The app changes the wire object

The draft file route has a project and a host, but it has no environment.

The app adds experimental_hostId to that source and sends the new object to every selected opener.

const routedFile =
  file.source.kind === "workspace" &&
  file.source.environmentId === null &&
  file.source.projectId !== null &&
  projectHostId
    ? { ...file, source: { ...file.source, experimental_hostId: projectHostId } }
    : file;

file-opener-tabs.ts, lines 186–206

An optional TypeScript field still changes a strict runtime contract

The public type calls the field optional. This rule protects new source producers, but it does not protect old strict consumers.

app-contract.ts, lines 168–179

The current File Editor uses a strict Zod object. Its old form had the same strict rule without the new key.

const sourceSchema = z
  .object({
    kind: z.enum(["workspace", "host", "thread-storage"]),
    threadId: z.string().nullable(),
    environmentId: z.string().nullable(),
    projectId: z.string().nullable(),
    experimental_hostId: z.string().optional(),
  })
  .strict();

monaco-editor/server.ts, lines 41–58

The dispatcher rejects the input before the opener runs

The plugin service changes all schema issues into invalid_input with a general message.

plugin-service.ts, lines 570–593

The dispatcher validates at line 2102. It calls the plugin handler at line 2107 only after successful validation.

plugin-service.ts, lines 2100–2107

The route maps invalid_input to HTTP 400.

plugins.ts, lines 638–701

The opener removes useful error detail

The RPC error includes the unknown key and its path. The opener keeps only error.message.

Its notice row then shows that general message without the plugin name or field name.

app.tsx, lines 336–342 and lines 465–468

Deeper contract problem

The code adds the field for every selected project host, including the default host in this reproduction.

The SDK text says BB omits the field for a primary host. The implementation does not test that condition.

An old opener also may not know how to resolve a project without an environment.

Therefore, removal of the field is not a safe general fix.

The audit already asks whether this field can become required without harm to old openers.

api_to_audit.md, lines 676–682

6. Proposed fix (first principles)

Add an explicit file-opener capability for project sources without environments.

Treat an absent capability as false, so old registrations keep their old contract.

Select a capable opener for this route. Use the native preview when no capable opener exists.

Send an explicit source version and host field only to a capable opener.

Keep read support for persisted tabs that contain experimental_hostId.

Also show the plugin name, RPC code, issue path, and update action in the File Editor error.

Do not only remove the field. A project can have sources on multiple hosts, and an old opener may require an environment.

Required tests

Verify that an old registration falls back to the native preview for an environment-free project.
Verify that a capable opener receives the selected host.
Verify that an environment-backed thread still uses an old opener without the new field.
Verify one clear policy for the default host.
Verify that the error notice keeps the plugin name and schema issue.

7. Related issues

#833 had the same general RPC message, but it had a different input mismatch.
PR #1979 added experimental_hostId for project file preview routes.

No open pull request links to issue #2519.

8. Appendix

Origin main check

No later main commit fixes this behavior as of fbc556d77775.

Evidence: main-check.txt.

Commands run

gh issue view 2519 --comments
pnpm install --frozen-lockfile --prefer-offline
pnpm exec turbo run build
git fetch origin main
rg -n "experimental_hostId|rpc input validation failed" apps packages plugins docs
git log -S'experimental_hostId' -- apps packages plugins docs
pnpm exec vitest run test/services/plugins/file-opener-legacy-source-repro.test.ts
scripts/bb-dev-app current
eval "$(scripts/bb-dev-app env)"
pnpm --silent bb:dev machine list --json
curl -X POST "$BB_SERVER_URL/api/v1/projects" ...
pnpm bb:dev plugin enable monaco-editor
curl -X POST "$BB_SERVER_URL/api/v1/plugins/monaco-editor/rpc/read" ...
pnpm bb:dev plugin reload monaco-editor
gh issue list --repo get-bb/bb --state all --search '"rpc input validation failed"'
git diff ad79bbb5ec90..origin/main -- <affected paths>

Artifact index

Caveat

The external plugin source was unavailable. The test and live application used its stated strict pre-field schema.

Verification

The verifier confirmed the live HTTP 400 and HTTP 200 control, both screenshots, and the missing main fix.

This revision repaired the patch, added exact downloads, used silent JSON output, ran the test first, and added the handler-order permalink.

#2519 · Plugin file openers built before experimental_hostId fail with “rpc input validation failed”

1. TL;DR

2. Claims vs findings

3. Environment

4. Minimal reproduction

Exact RPC result

Automated failing repro

5. Root cause

The app changes the wire object

An optional TypeScript field still changes a strict runtime contract

The dispatcher rejects the input before the opener runs

The opener removes useful error detail

Deeper contract problem

6. Proposed fix (first principles)

Required tests

7. Related issues

8. Appendix

Origin main check

Commands run

Artifact index

Caveat

Verification

#2519 · Plugin file openers built before `experimental_hostId` fail with “rpc input validation failed”
