#2314 · Claude Code subagent transcripts aren't clickable: outputFile is dropped before it reaches the UI

Bug Priority: Medium Effort: High providers ui provider-claude-code open on GitHub 2026-08-24 · base 494f66526

Verdict: REPRODUCED · Root-cause confidence: high

Note on scope: the issue's core claim (the persisted outputFile never reaches the timeline/UI) is fully reproduced against the base commit with a real Claude Code background subagent and a failing unit test. Two peripheral claims in the issue about which row is rendered are inaccurate and are corrected below; they do not change the root cause.

1. TL;DR

When a Claude Code thread spawns a subagent with run_in_background: true, the Claude Code SDK reports the finished task with an output_file that points (via a symlink under /private/tmp/claude-501/…/tasks/<task>.output) at the subagent's full JSONL transcript in ~/.claude/projects/…/subagents/agent-<id>.jsonl. bb's Claude Code provider plugin and the bridge assembler carry that path intact into the persisted item/backgroundTask/completed event (we see it in bb thread log --format json), but packages/thread-view/src/background-task-projection.ts copies every field of the item except outputFile into the projection message. Consequently the timeline row contract (timelineWorkflowWorkRowSchema) has no such field, the server's /timeline response contains zero occurrences of outputFile, and the web app has nothing to link to.

What the user actually sees for a background subagent is a "Launched subagent …" delegation row (the background-task lifecycle row is deliberately filtered out of a delegation's children, so the "Ran background agent" row is never shown). Expanding it shows the streamed subagent reply plus the raw Agent tool result — internal-metadata prose that happens to contain the output_file path as plain, non-clickable text. There is no way in the UI, the CLI timeline, or the SDK row model to open the transcript.

2. Claims vs findings

3. Environment

• bb base commit 494f66526913557ab076e048218236f0a6610927 (package version 0.39.0); origin/main at 21cb6b68b contains no later fix.
• macOS 26.5.2 (Darwin 25.5, Apple Silicon), Node v22.23.1, pnpm via repo toolchain.
• Provider: claude-code built-in plugin, @anthropic-ai/claude-agent-sdk@0.3.197, Claude Code CLI 2.1.241 (from the transcript's version field), model claude-opus-5[1m], reasoning medium, permission mode full.
• Dev instance started with BB_PROVIDER_BRIDGE_RECORD_DIR=/tmp/bb-2314-rec scripts/bb-dev-app current: App http://localhost:11995, Server http://localhost:19995, Host daemon http://127.0.0.1:27995, data dir ~/.bb-dev/bb-machines-HOST.getbb.app-checkouts-bb-.claude-worktrees-wf_846839f8-f8a-40-73df5863b603 (deleted at cleanup).
• Scratch repo /tmp/bb-2314-qa (one commit), project proj_5wa4c5gm7g, thread thr_ttps3bh4t4, host host_6s94nk85nk.

4. Minimal reproduction

A. Live (one real Claude Code turn)

1. Start an isolated dev instance from the worktree and read its URLs:

   BB_PROVIDER_BRIDGE_RECORD_DIR=/tmp/bb-2314-rec scripts/bb-dev-app current
   scripts/bb-dev-app env     # → BB_SERVER_URL=http://localhost:19995, BB_HOST_DAEMON_PORT=27995

2. Create a scratch repo and a project on it:

   mkdir -p /tmp/bb-2314-qa && git -C /tmp/bb-2314-qa init -q && echo hello > /tmp/bb-2314-qa/README.md
   git -C /tmp/bb-2314-qa add -A && git -C /tmp/bb-2314-qa -c user.email=qa@example.com -c user.name=qa commit -qm init
   curl -s -X POST $BB_SERVER_URL/api/v1/projects -H 'content-type: application/json' \
     -d '{"name":"qa","source":{"type":"local_path","path":"/tmp/bb-2314-qa","hostId":"host_6s94nk85nk"}}'
   # → {"id":"proj_5wa4c5gm7g", ...}

3. Spawn a Claude Code thread that launches one background subagent:

   node packages/scripts/dist/commands/run-cli.js thread spawn --project proj_5wa4c5gm7g --provider claude-code \
     --permission-mode full --title "2314 bg subagent" --json \
     --prompt 'Call the Agent tool exactly once with run_in_background: true, subagent_type: "general-purpose", description: "say ok", and prompt: "Reply only with the word ok.". Wait for that background agent to finish (do not poll with other tools unless required), then reply only with the word ok.'
   # → {"id":"thr_ttps3bh4t4", ...}
   node packages/scripts/dist/commands/run-cli.js thread wait thr_ttps3bh4t4 --timeout 240 --json
   # → {"threadId":"thr_ttps3bh4t4","matched":true,"target":{"kind":"status","status":"idle"}}

4. The SDK reported the task with an output_file (captured from the bridge recording, sdk-task-messages.ndjson):

   "subtype":"task_notification","task_id":"a580916a454988308","tool_use_id":"toolu_01UyZ4JYC4TB9AfXJRaGDzbm","status":"completed",
   "output_file":"/private/tmp/claude-501/-private-tmp-bb-2314-qa/a5a628b4-96a6-4fbc-a7d1-631e4aaa699d/tasks/a580916a454988308.output",
   "summary":"ok","usage":{"total_tokens":11933,"tool_uses":0,"duration_ms":1447}

5. The persisted bb event still has it (bb thread log --format json --all, filtered with inspect-log.py; full dump thread-log.json):

   node packages/scripts/dist/commands/run-cli.js thread log thr_ttps3bh4t4 --format json --all > thread-log.json
   python3 inspect-log.py thread-log.json

   events: 33
   10 item/started {"type": "delegation", "id": "daabc76b69-i1", "childRef": "toolu_01UyZ4JYC4TB9AfXJRaGDzbm", "label": "say ok", "status": "pending", "background": true}
   13 item/started {"type": "backgroundTask", "id": "daabc76b69-i2", "familyId": "a580916a454988308", "taskType": "local_agent", "description": "say ok", "status": "pending", "taskStatus": "running", "skipTranscript": false, "parentToolCallId": "daabc76b69-i1"}
   14 item/delegation/completed {"type": "delegation", "id": "daabc76b69-i1", ..., "status": "completed", "background": true, "summary": "Async agent launched successfully. (This tool result is internal metadata — never quote or paste any part of it ..."}
   18 item/backgroundTask/completed {"type": "backgroundTask", "id": "daabc76b69-i2", "familyId": "a580916a454988308", "taskType": "local_agent", "description": "say ok", "status": "completed", "taskStatus": "completed", "skipTranscript": false, "usage": {"totalTokens": 11933, "toolUses": 0, "durationMs": 1447}, "summary": "ok",
      "outputFile": "/private/tmp/claude-501/-private-tmp-bb-2314-qa/a5a628b4-96a6-4fbc-a7d1-631e4aaa699d/tasks/a580916a454988308.output", "parentToolCallId": "daabc76b69-i1"}

6. The server's timeline — what the app, CLI and SDK consume — has dropped it:

   curl -s "$BB_SERVER_URL/api/v1/threads/thr_ttps3bh4t4/timeline?includeNestedRows=true" > timeline-api.json
   grep -c outputFile timeline-api.json
   expected: 1 (or a transcript/outputFile field on the subagent row)
   actual:   0

   # row tree (2314/repro/timeline-api-summary.txt):
   conversation {'role': 'user', 'text': 'Call the Agent tool exactly once with run_in_background: true, ...'}
   system {'status': 'completed'}
   turn {'status': 'completed'}
     work {'workKind': 'delegation', 'status': 'completed', 'background': 'True', 'output': 'Async agent launched successfully. (This tool result is internal metadata — never quote or', 'description': 'say ok'}
       conversation {'role': 'assistant', 'text': 'ok'}
     system {'status': 'completed'}
     system {'status': 'completed'}
   conversation {'role': 'assistant', 'text': 'Waiting for the agent to finish.'}
   conversation {'role': 'assistant', 'text': 'ok'}

   Note there is no workKind: "workflow" row at all: the backgroundTask lifecycle row was filtered out of the delegation's children.
7. Unit-level repro (fails on the base commit). Save as packages/thread-view/test/issue-2314-output-file.test.ts and run pnpm exec vitest run test/issue-2314-output-file.test.ts from packages/thread-view:

   // Repro for get-bb/bb#2314: the persisted backgroundTask item carries
   // `outputFile` (the Claude Code subagent transcript JSONL path), but the
   // thread-view projection drops it, so no timeline row ever sees it.
   import { threadScope, turnScope } from "@bb/domain";
   import type { ThreadEvent, ThreadEventBackgroundTaskItem } from "@bb/domain";
   import type { TimelineRow, TimelineWorkflowWorkRow } from "@bb/server-contract";
   import { describe, expect, it } from "vitest";
   import {
     buildThreadTimelineFromEvents,
     type ThreadEventWithMeta,
   } from "../src/index.js";
   import { EMPTY_ACCEPTED_CLIENT_REQUEST_CONTEXT } from "../src/accepted-client-request-context.js";
   import { upsertBackgroundTaskMessage } from "../src/background-task-projection.js";

   const OUTPUT_FILE =
     "/Users/qa/.claude/projects/-tmp-bb-2314-qa/abc123/subagents/agent-a1b2c3.jsonl";

   function withMeta(event: ThreadEvent, seq: number): ThreadEventWithMeta {
     return {
       event,
       meta: { id: `event-${seq}`, seq, createdAt: seq * 1_000 },
     };
   }

   function subagentItem(args: {
     status: ThreadEventBackgroundTaskItem["status"];
     taskStatus: ThreadEventBackgroundTaskItem["taskStatus"];
     outputFile?: string;
     summary?: string;
   }): ThreadEventBackgroundTaskItem {
     return {
       type: "backgroundTask",
       id: "task:sub-1",
       familyId: "sub-1",
       taskType: "local_subagent",
       description: "say ok",
       status: args.status,
       taskStatus: args.taskStatus,
       skipTranscript: false,
       ...(args.summary ? { summary: args.summary } : {}),
       ...(args.outputFile ? { outputFile: args.outputFile } : {}),
     };
   }

   function findWorkflowRows(rows: TimelineRow[]): TimelineWorkflowWorkRow[] {
     const found: TimelineWorkflowWorkRow[] = [];
     for (const row of rows) {
       if (row.kind === "work" && row.workKind === "workflow") found.push(row);
       if (row.kind === "turn" && row.children)
         found.push(...findWorkflowRows(row.children));
     }
     return found;
   }

   const events: ThreadEventWithMeta[] = [
     withMeta(
       {
         type: "turn/started",
         threadId: "thread-1",
         providerThreadId: "provider-1",
         scope: turnScope("turn-1"),
       },
       1,
     ),
     withMeta(
       {
         type: "item/started",
         threadId: "thread-1",
         providerThreadId: "provider-1",
         scope: turnScope("turn-1"),
         item: subagentItem({ status: "pending", taskStatus: "running" }),
       },
       2,
     ),
     withMeta(
       {
         type: "item/backgroundTask/completed",
         threadId: "thread-1",
         providerThreadId: "provider-1",
         scope: threadScope(),
         item: subagentItem({
           status: "completed",
           taskStatus: "completed",
           summary: "Agent \"say ok\" completed",
           outputFile: OUTPUT_FILE,
         }),
       },
       3,
     ),
   ];

   describe("#2314 background subagent outputFile", () => {
     it("projection keeps outputFile from the completed backgroundTask item", () => {
       const state = {
         messages: [],
         backgroundTasksByItemId: new Map(),
       };
       for (const { event, meta } of events) {
         upsertBackgroundTaskMessage(state, meta, event);
       }
       const message = state.backgroundTasksByItemId.get("task:sub-1");
       expect(message).toBeDefined();
       // The completed item carried outputFile; summary survived but outputFile
       // was never copied in applyBackgroundTaskItem.
       expect(message).toMatchObject({ summary: "Agent \"say ok\" completed" });
       expect(message).toMatchObject({ outputFile: OUTPUT_FILE });
     });

     it("timeline workflow row exposes outputFile", () => {
       const { rows } = buildThreadTimelineFromEvents({
         acceptedClientRequestContext: EMPTY_ACCEPTED_CLIENT_REQUEST_CONTEXT,
         contextWindowEvents: [],
         events,
         options: {
           includeNestedRows: true,
           includeProviderUnhandledOperations: false,
           isLatestPage: true,
           threadStatus: "idle",
           threadName: "",
           turnMessageDetail: "full",
           workspaceRoot: null,
         },
       });
       const [row] = findWorkflowRows(rows);
       expect(row).toBeDefined();
       expect(row).toMatchObject({
         taskType: "local_subagent",
         status: "completed",
         summary: "Agent \"say ok\" completed",
       });
       expect(row).toMatchObject({ outputFile: OUTPUT_FILE });
     });
   });

   Output on 494f66526 (full log):

    FAIL  @bb/thread-view  test/issue-2314-output-file.test.ts > #2314 background subagent outputFile > projection keeps outputFile from the completed backgroundTask item
   AssertionError: expected { kind: 'workflow', …(21) } to match object { Object (outputFile) }
   - Expected
   + Received
   -   "outputFile": "/Users/qa/.claude/projects/-tmp-bb-2314-qa/abc123/subagents/agent-a1b2c3.jsonl",
   +   "summary": "Agent \"say ok\" completed",   (… 20 other matching properties)

    FAIL  @bb/thread-view  test/issue-2314-output-file.test.ts > #2314 background subagent outputFile > timeline workflow row exposes outputFile
   AssertionError: expected { id: 'task:sub-1', …(20) } to match object { Object (outputFile) }
   -   "outputFile": "/Users/qa/.claude/projects/-tmp-bb-2314-qa/abc123/subagents/agent-a1b2c3.jsonl",

    Test Files  1 failed (1)
         Tests  2 failed (2)

   The first assertion fails because applyBackgroundTaskItem copies summary but not outputFile; the second because neither the projection message nor buildWorkflowWorkRow has the field, so the row cannot carry it.

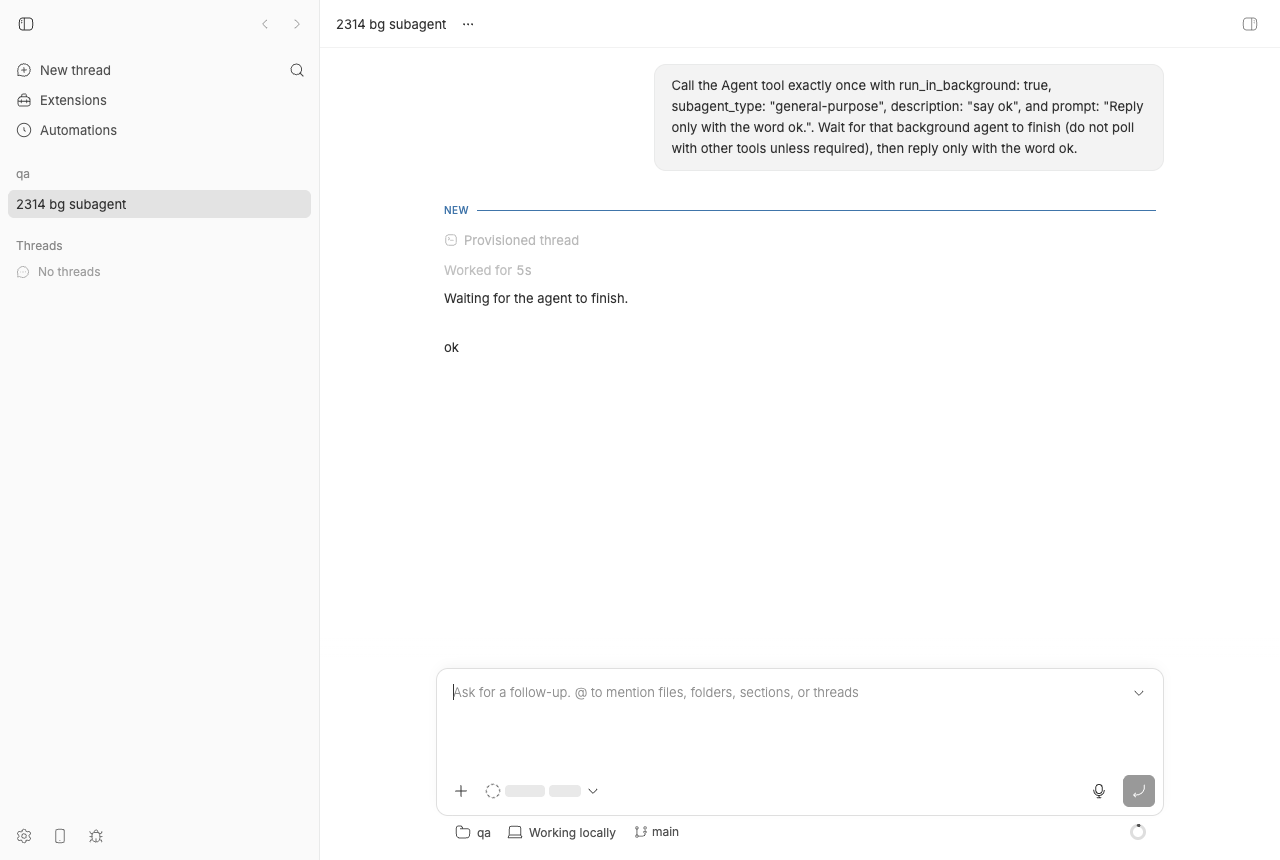

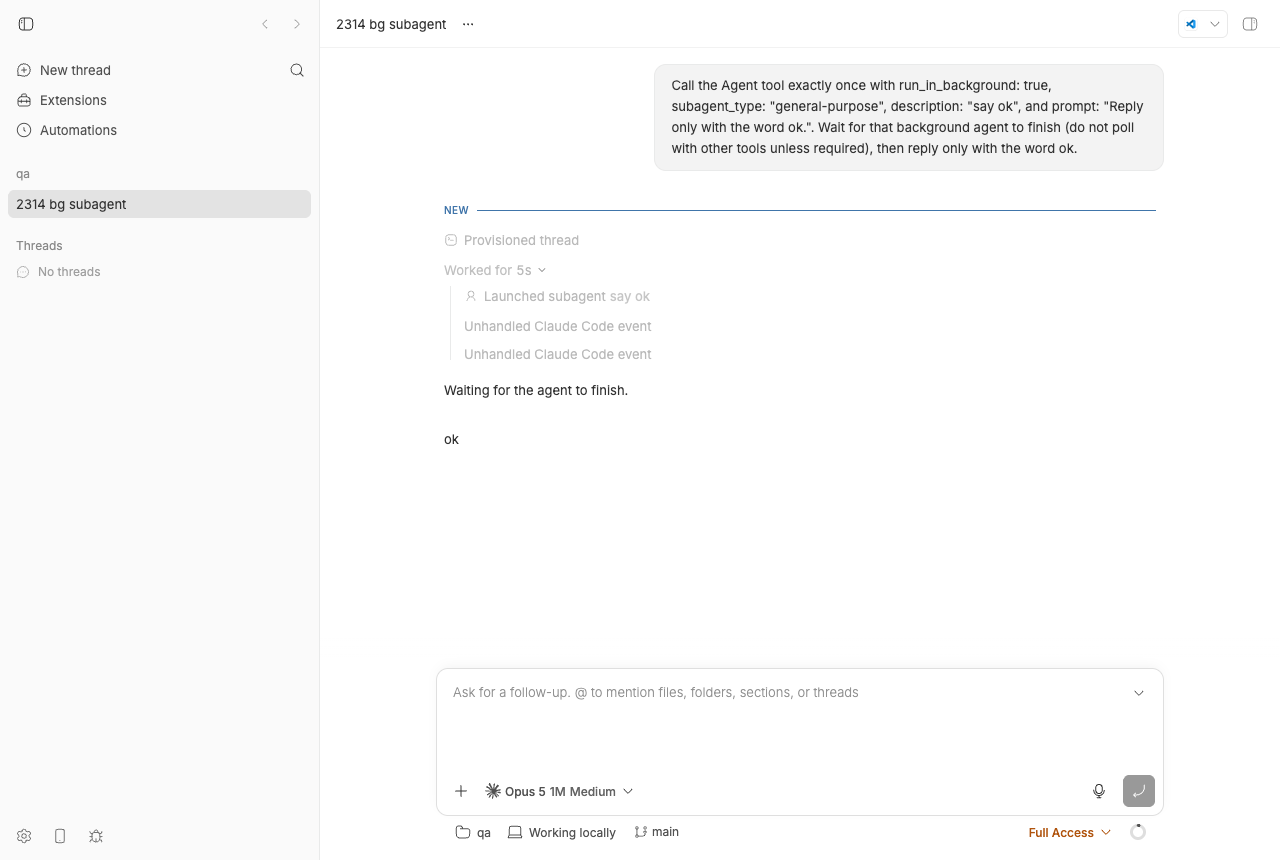

B. What the UI shows

Repro files: 2314/repro/ (test file, thread log JSON + verbose, timeline API response and summary, SDK task messages from the bridge recording, the doobie scripts used for the screenshots).

5. Root cause

Primary (the bug as filed): the field is simply never copied into the thread-view projection, and nothing downstream defines it.

• background-task-projection.ts#L58-L78 — applyBackgroundTaskItem assigns familyId, taskType, workflowName, description, status, taskStatus, skipTranscript, workflow, usage, summary, error and stops. #L116-L147 builds the initial message with the same list.
• event-projection-message.ts#L441-L468 — EventProjectionWorkflowMessage has no outputFile, so TypeScript never complained about the omission.
• thread-timeline.ts#L573-L587 — timelineWorkflowWorkRowSchema (the server↔app/CLI/SDK contract) has no such field either, and build-thread-timeline.ts#L344-L370 buildWorkflowWorkRow copies the same list minus the field.

Upstream of the projection everything works: the SDK notification carries output_file; task-translation.ts#L432-L437 stores it when non-empty; buildClaudeTaskShape embeds it in the close delta; delta-assembler.ts buildBackgroundTaskItem puts it on the canonical item, which is persisted (seq 18 above). History: the field was introduced with the rest of the background-task plumbing in 8b67f14f9 ("feat: Claude Code workflows + ultracode reasoning level", 2026-06-03) and the projection never consumed it — it has been write-only data since day one.

Secondary (why fixing the projection alone would still show nothing): for a background Agent call the task item carries parentToolCallId = the Agent delegation item. The timeline builder nests it as a child of the delegation and then removes it: isDelegationLifecycleChildRow / filterDelegationChildRows, applied at #L783 (added in e20dd9dba, PR #527, "De-duplicate subagent child rows"). So the row that would own outputFile is never rendered; the visible row is the delegation row, which has no notion of a transcript path. The delegation body (ThreadTimelineRows.tsx#L1381-L1417) renders childRows + row.output; row.output is the raw Agent tool result, which is how the internal-metadata prose (and the path, as inert text) ends up on screen. WorkflowWorkRowBody (#L22-L28) only matters for background tasks that are not parented to a delegation.

Deeper observation: output_file is a host-local path (a symlink under the Claude Code task dir pointing into ~/.claude/projects/…/subagents/) on the machine where the provider ran. Any "open transcript" affordance therefore has to go through the host daemon's file access (as bb thread open <id> <path> / the local-file-link handler already do), not the browser, and should resolve the symlink. The transcript also contains the subagent's full attachments (the complete skill listing, deferred tool names), so it is large and mildly sensitive — the Agent tool result itself warns the model not to read it.

6. Proposed fix (first principles)

Confidence: high for the data plumbing; the UX shape is a product choice. Minimal end-to-end change:

1. thread-view projection — add outputFile: string | null to EventProjectionWorkflowMessage and copy it in both places in background-task-projection.ts (message.outputFile = item.outputFile ?? null; in applyBackgroundTaskItem and outputFile: lifecycle.item.outputFile ?? null in the initial construction). This alone makes the repro test's first case pass.
2. Row contract — add outputFile: z.string().nullable() to timelineWorkflowWorkRowSchema in packages/server-contract/src/thread-timeline.ts and copy it in buildWorkflowWorkRow. Per AGENTS.md a nullable field is appropriate here because absence has real meaning (provider did not report a transcript). This is a server↔app contract, not a server↔host-daemon wire shape, so HOST_DAEMON_PROTOCOL_VERSION does not need a bump (the daemon-side backgroundTask item already carries the field). The second repro case then passes.
3. Surface it on the row the user actually sees — because the lifecycle row is filtered out of delegation children, the delegation row needs the path too. In build-thread-timeline.ts case "delegation", before filtering, pick the filtered-out workflow child whose outputFile is non-null and set a new transcriptPath: string | null (name to taste) on TimelineDelegationWorkRow (contract + builder). Keep the filter; do not re-show the duplicate row.
4. UI — in the delegation body (ThreadTimelineRows.tsx ~L1381) and in WorkflowWorkRowBody (for unparented background agents) render an "Open transcript" action that calls the existing onOpenLocalFileLink handler with the path, so it opens in a file pane via the host daemon like other local paths. The Claude Code plugin could also hide the internal-metadata tool-result prose from row.output for background delegations once the path has a proper home, since that text is explicitly not meant for users.
5. CLI/SDK parity — bb thread log --format verbose should print the transcript path on the "Launched subagent" entry, and bb thread open <id> <path> already handles opening it; document in the threads guide.

What could go wrong: (a) the path is only valid on the provider's host — opening it from a different machine must go through that host's daemon, and a stale path (Claude Code cleans /private/tmp/claude-…/tasks) should fail gracefully; (b) rendering the JSONL as "childRows" as the issue suggests would require a new parser for Claude's sidechain transcript format and would duplicate content the SDK already streams under parent_tool_use_id — opening the file in a pane is the smaller, safer first step; (c) existing tests that snapshot delegation rows will need the new nullable field.

7. PR review

No open pull requests are linked to this issue (gh pr list --search "outputFile" and --search "2314" return nothing).

8. Related issues

• #2315 — Composer's running-agents status bar isn't clickable, unlike the main timeline (same reporter, same background-agent surface).
• PR #527 (e20dd9dba) — introduced the delegation-child filtering that hides the background-agent lifecycle row; any fix must account for it.

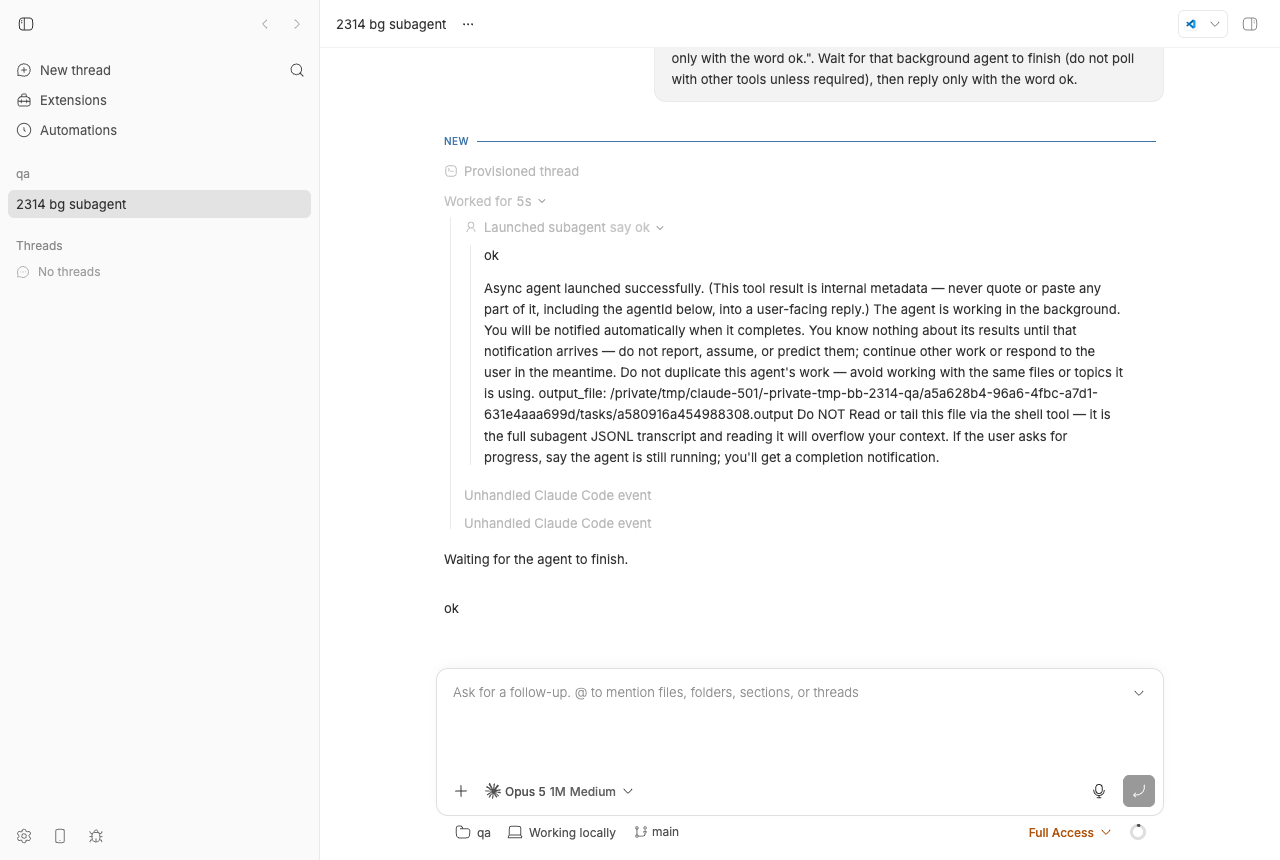

• Side finding (not filed): the Agent tool result for background agents ("Async agent launched successfully. (This tool result is internal metadata — never quote…)") is rendered verbatim as the delegation row's output, and the SDK's background_tasks_changed system messages render as two "Unhandled Claude Code event" rows.

9. Appendix

On-disk transcript referenced by output_file

$ ls -la /private/tmp/claude-501/-private-tmp-bb-2314-qa/a5a628b4-96a6-4fbc-a7d1-631e4aaa699d/tasks/
lrwxr-xr-x  a580916a454988308.output -> /Users/USER/.claude/projects/-private-tmp-bb-2314-qa/a5a628b4-96a6-4fbc-a7d1-631e4aaa699d/subagents/agent-a580916a454988308.jsonl

$ cat …/tasks/a580916a454988308.output   (4 JSONL lines; attachments elided)
{"parentUuid":null,"isSidechain":true,"agentId":"a580916a454988308","type":"user","message":{"role":"user","content":"Reply only with the word ok."}, ... "version":"2.1.241"}
{"isSidechain":true,"agentId":"a580916a454988308","attachment":{"type":"deferred_tools_delta", ...},"type":"attachment", ...}
{"isSidechain":true,"agentId":"a580916a454988308","attachment":{"type":"skill_listing","content":"- dev-browser: ...","skillCount":41}, ...}
{"isSidechain":true,"agentId":"a580916a454988308","message":{"model":"claude-opus-5","role":"assistant","content":[{"type":"text","text":"ok"}],"stop_reason":"end_turn", ...},"type":"assistant", ...}

Event sequence of the repro thread

seq type                               item            id             parent         text
10  item/started                       delegation      daabc76b69-i1                 say ok
13  item/started                       backgroundTask  daabc76b69-i2  daabc76b69-i1  say ok
14  item/delegation/completed          delegation      daabc76b69-i1                 say ok
15  item/completed                     agentMessage    daabc76b69-i3  daabc76b69-i1  ok        ← subagent reply streamed under parent_tool_use_id
18  item/backgroundTask/completed      backgroundTask  daabc76b69-i2  daabc76b69-i1  say ok    ← carries outputFile
26  item/completed                     agentMessage    daabc76b69-i5                 Waiting for the agent to finish.
33  item/completed                     agentMessage    daabc76b69-i6                 ok

Full list: event-summary.txt. Bridge recording counts: 1 provider message with parent_tool_use_id = toolu_01UyZ4…, 35 with null.

bb thread log --format verbose (excerpt)

── Worked for (5s) ─────────────────────────────────────────
  ── Launched subagent say ok
    ── Assistant
    ok

  ── Unhandled Claude Code event
    SDK System
    Raw event: sdk/system
    ... "subtype": "background_tasks_changed" ...

No transcript path is printed by the CLI either (thread-log-verbose.txt).

Commands run

git checkout 494f66526
pnpm install --frozen-lockfile --prefer-offline
pnpm exec turbo run build
BB_PROVIDER_BRIDGE_RECORD_DIR=/tmp/bb-2314-rec scripts/bb-dev-app current
scripts/bb-dev-app env
pnpm bb:dev machine list --json
curl -s -X POST $BB_SERVER_URL/api/v1/projects ...            # project proj_5wa4c5gm7g
node packages/scripts/dist/commands/run-cli.js thread spawn ... # thr_ttps3bh4t4
node packages/scripts/dist/commands/run-cli.js thread wait thr_ttps3bh4t4 --timeout 240 --json
node packages/scripts/dist/commands/run-cli.js thread log thr_ttps3bh4t4 --format json --all
node packages/scripts/dist/commands/run-cli.js thread log thr_ttps3bh4t4 --format verbose
curl -s "$BB_SERVER_URL/api/v1/threads/thr_ttps3bh4t4/timeline?includeNestedRows=true"
grep task_notification /tmp/bb-2314-rec/claude-code/thr_ttps3bh4t4/provider→bridge.ndjson
(cd packages/thread-view && pnpm exec vitest run test/issue-2314-output-file.test.ts)
doobie --headless < 2314/repro/doobie-shot{1,2,3}.js            # screenshots
gh api repos/get-bb/bb/commits/9375a5495464c16fd9c3d03176add0a1dfca5172
git log --oneline 494f66526..origin/main -- packages/thread-view apps/app/src/components/thread/timeline plugins/provider-claude-code packages/server-contract/src/thread-timeline.ts   # empty
pnpm dev:stop  (cleanup)
