← reports

#1985 · PDF file previews show "Preview not available for application/pdf"

Bug Priority: Medium Effort: Small (per issue) ui open on GitHub 2026-08-20 · base c7c66423d

Verdict: REPRODUCED · Root-cause confidence: high

1. TL;DR

Opening any real-world PDF in the secondary-panel file preview (workspace file tab, host file, project file, or thread storage) shows the dashed error card Preview not available for application/pdf. instead of the document. The server side is fine: the content routes return 200, content-type: application/pdf and the exact bytes. The gap is purely in the shared client classifier buildFilePreview() (now in packages/client-core/src/file-preview.ts after #1986 moved it out of apps/app): it recognises image/*, a list of text mime types, a UTF‑8 fallback and video/*, and anything else becomes kind: "unsupported", which SecondaryPanelFilePreview renders as that error message. A side effect of the UTF‑8 fallback is that an all‑ASCII PDF (no compressed streams) is not "unsupported" at all — it is shown as plain text of PDF markers. PR #1979 adds a pdf kind rendered via an un-sandboxed <iframe> and works in both Chromium and Electron 41 in my testing, but it is currently CONFLICTING with main and, once rebased onto the shared @bb/client-core module, breaks the @bb/mobile typecheck.

2. Claims vs findings

3. Environment

• bb commit c7c66423d55c320bab9103218f0ffef1a8191331 (origin/main, 2026-08-20); no later commit on origin/main touches the preview classifier.
• Linux 7.0.0-29-generic, Node v24.18.0, Electron 41.7.0 (Chrome 146.0.7680.216), Playwright Chromium 1228 (headed, under Xvfb :150), codex-cli 0.148.0 (only used for a one-line "Reply only with ok." turn to provision a thread).
• Dev instance: scripts/bb-dev-app current → App http://localhost:14918, Server http://localhost:22918, Host daemon 127.0.0.1:30918, data dir ~/.bb-dev/projects-bb-.claude-worktrees-wf_926b3193-f6c-6-f628a94ebc23 (deleted at cleanup).
• Scratch repo /tmp/bb-1985-qa containing handbook.pdf (632-byte one-page PDF with a FlateDecode stream, generated by Python; copy in 1985/repro/handbook.pdf).

4. Minimal reproduction

4a. Unit-level (fails on main)

1. Save file-preview-pdf-repro.test.ts to packages/client-core/test/ and run:

   cd packages/client-core && pnpm exec vitest run test/file-preview-pdf-repro.test.ts

   expected: both tests pass (a binary application/pdf gets a renderable kind)
   actual:

    RUN  v4.1.1 /home/sawyer/projects/bb/.claude/worktrees/wf_926b3193-f6c-6/packages/client-core

    ❯  @bb/client-core  test/file-preview-pdf-repro.test.ts (2 tests | 1 failed) 4ms
        × a real (binary) PDF served as application/pdf should get a renderable preview kind 3ms

   ⎯⎯⎯⎯⎯⎯⎯ Failed Tests 1 ⎯⎯⎯⎯⎯⎯⎯

    FAIL   @bb/client-core  test/file-preview-pdf-repro.test.ts > #1985 PDF file preview > a real (binary) PDF served as application/pdf should get a renderable preview kind
   AssertionError: expected 'unsupported' not to be 'unsupported' // Object.is equality
    ❯ test/file-preview-pdf-repro.test.ts:29:30
        27|     // On main this is "unsupported", which ThreadStorageFilePreview r…
        28|     // `Preview not available for application/pdf.`
        29|     expect(preview.kind).not.toBe("unsupported");
          |                              ^
        30|   });
        31|

   ⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯[1/1]⎯


    Test Files  1 failed (1)
         Tests  1 failed | 1 passed (2)
      Start at  14:12:21
      Duration  117ms (transform 18ms, setup 0ms, import 28ms, tests 4ms, environment 0ms)



   The first assertion fails because buildFilePreview returns kind: "unsupported". The second test passes and documents the less obvious half: an all-ASCII PDF is classified as text.

// Repro for get-bb/bb#1985: PDF previews fall through to `unsupported`.
// Run: cd packages/client-core && pnpm exec vitest run test/file-preview-pdf-repro.test.ts
import { describe, expect, it } from "vitest";
import { buildFilePreview } from "../src/file-preview.js";

// Header + a binary (deflate) stream with bytes that are not valid UTF-8,
// which is what every real-world PDF looks like.
const BINARY_PDF_BYTES = Uint8Array.from([
  ...new TextEncoder().encode("%PDF-1.7\n%"),
  0xe2, 0xe3, 0xcf, 0xd3, // the conventional binary-marker comment bytes
  ...new TextEncoder().encode(
    "\n1 0 obj\n<< /Length 8 /Filter /FlateDecode >>\nstream\n",
  ),
  0x78, 0x9c, 0x00, 0xff, 0xfe, 0x01, 0x00, 0x80,
  ...new TextEncoder().encode("\nendstream\nendobj\n%%EOF\n"),
]);

describe("#1985 PDF file preview", () => {
  it("a real (binary) PDF served as application/pdf should get a renderable preview kind", () => {
    const preview = buildFilePreview({
      contentBytes: BINARY_PDF_BYTES,
      mimeType: "application/pdf",
      name: "handbook.pdf",
      path: "docs/handbook.pdf",
      url: "/api/v1/threads/t1/host-files/content?path=docs/handbook.pdf",
    });
    // On main this is "unsupported", which ThreadStorageFilePreview renders as
    // `Preview not available for application/pdf.`
    expect(preview.kind).not.toBe("unsupported");
  });

  it("an all-ASCII PDF (no compressed streams) is NOT 'unsupported' but is mis-classified as text", () => {
    const preview = buildFilePreview({
      contentBytes: new TextEncoder().encode(
        "%PDF-1.4\n1 0 obj\n<< /Type /Catalog /Pages 2 0 R >>\nendobj\n%%EOF\n",
      ),
      mimeType: "application/pdf",
      name: "flat.pdf",
      path: "flat.pdf",
      url: "/files/flat.pdf",
    });
    // Documents current behavior: the UTF-8 fallback wins, so the panel shows
    // the PDF's markers as source text instead of a document.
    expect(preview.kind).toBe("text");
  });
});

4b. Live, in the app

1. Start a dev instance: scripts/bb-dev-app current; note App/Server URLs.
2. Make a scratch git repo with a PDF (any real PDF works; mine was generated with a small Python script, see appendix) and register it as a project:

   curl -s -X POST $BB_SERVER_URL/api/v1/projects -H 'content-type: application/json' \
     -d '{"name":"qa","source":{"type":"local_path","path":"/tmp/bb-1985-qa","hostId":"<host id from /api/v1/hosts>"}}'

3. Confirm the server serves the PDF correctly (this is the part the issue says already works):

   $ curl -sD - -o /tmp/out.pdf "$BB_SERVER_URL/api/v1/projects/proj_cw26yy9qhd/files/content?path=handbook.pdf"
   HTTP/1.1 200 OK
   cache-control: private, no-cache
   content-length: 632
   content-type: application/pdf
   etag: "cdabf618…"
   x-bb-content-encoding: base64
   $ cmp /tmp/out.pdf /tmp/bb-1985-qa/handbook.pdf && echo BYTES_MATCH
   BYTES_MATCH

4. Create a thread in that project (I used POST /api/v1/threads with a one-line prompt) and open it in a browser at http://localhost:14918/threads/<thread id>.
5. Open the PDF in the panel from the CLI:

   pnpm bb:dev thread open <thread id> handbook.pdf --json
   # → {"file":{"source":"workspace","path":"handbook.pdf"}, "delivered": 2, …}

6. Observe the panel.

   expected: the PDF renders (like images / markdown do)

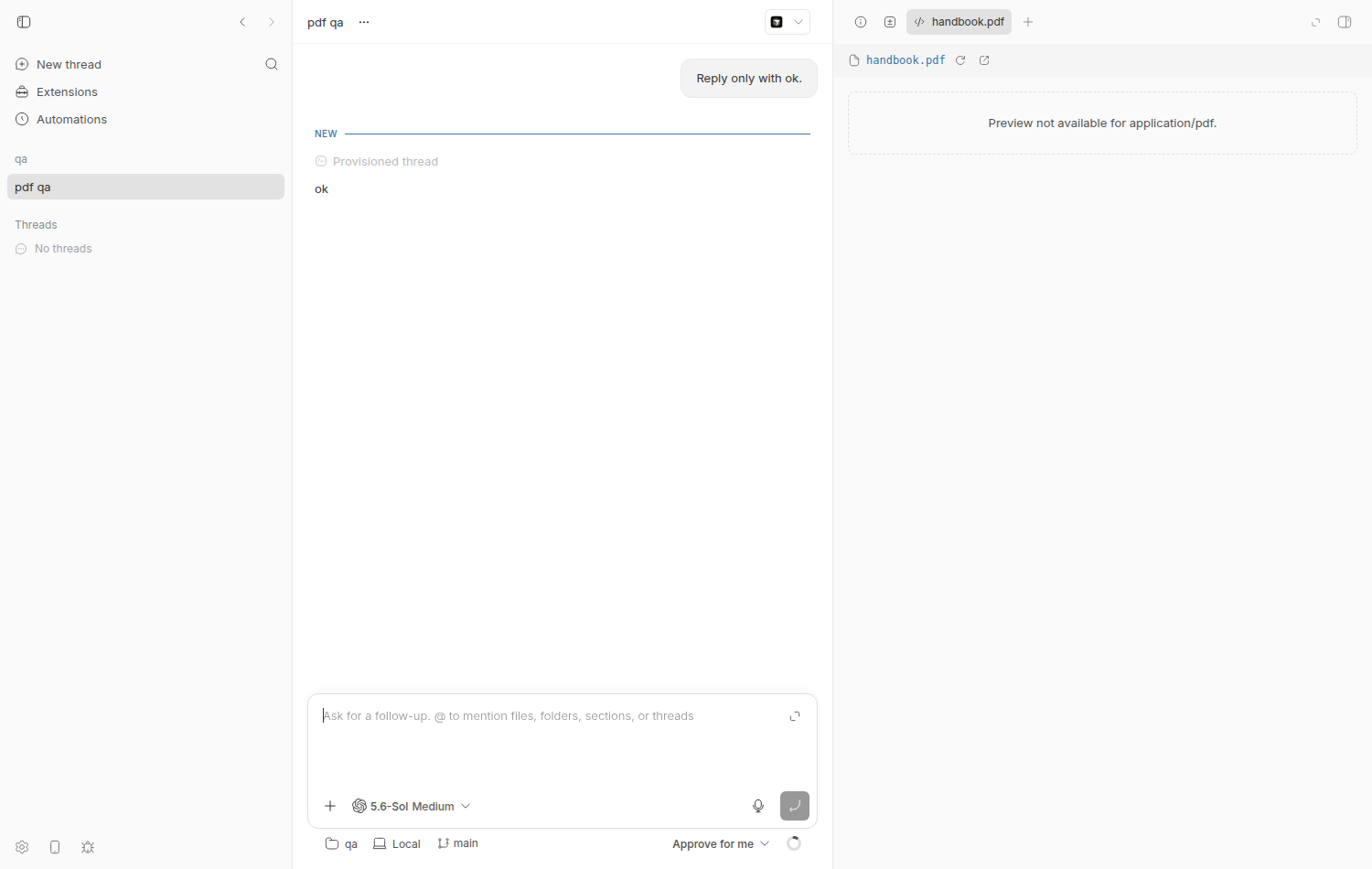

   actual:   dashed card reading  "Preview not available for application/pdf."

Repro files: 1985/repro/ (test, PDF, doobie scripts, logs, rebased PR diff).

5. Root cause

The client decides how to render a file purely from buildFilePreview() in packages/client-core/src/file-preview.ts#L232-L281 (re-exported by apps/app/src/lib/file-preview.ts):

if (args.mimeType.startsWith("image/")) return { kind: "image", ...base };
if (isKnownTextMimeType(args.mimeType)) { … return { kind: "text", … } }
const fallbackTextContent = decodeUtf8Text(args.contentBytes);
if (fallbackTextContent !== null) return { kind: "text", …, content: fallbackTextContent };
if (args.mimeType.startsWith("video/")) return { kind: "video", ...base };
return { kind: "unsupported", ...base };

Every real PDF contains compressed/binary streams (and usually the %âãÏÓ binary-marker comment), so decodeUtf8Text returns null and the function falls through to unsupported. SecondaryPanelFilePreview then maps unsupported to an error state at ThreadStorageFilePreview.tsx#L255-L269:

state={{ kind: "error", message: `Preview not available for ${filePreview.mimeType}.` }}

The mime type itself comes from the host daemon's extension lookup (mimeTypes.lookup(path) in file-read.ts#L259) and is passed through unchanged by createDaemonFileContentResponse (daemon-file-response.ts#L48-L63) with x-content-type-options: nosniff and no Content-Disposition, so the server really is ready to be framed. The same classifier feeds all four app surfaces (host files, project files, thread storage via loadFilePreview in apps/app/src/lib/api.ts; workspace files via buildEnvironmentFilePreview in environment-queries.ts) and, since #1986, the mobile app too.

Deeper/secondary issue: the ordering of the UTF‑8 fallback before any "known binary document" check means an uncompressed PDF is silently shown as source text (%PDF-1.4 1 0 obj << /Type /Catalog …) rather than flagged; any fix must classify by mime type before the fallback, as #1979 does.

6. Proposed fix (first principles)

• In packages/client-core/src/file-preview.ts (not apps/app/src/lib/file-preview.ts, which is now a re-export), add a PdfFilePreview kind and return it for application/pdf before the text checks. Export the type from client-core and the app re-export.
• In apps/app: add { kind: "pdf"; url } to FilePreviewState, render an <iframe src={url}> with full-height layout (Chromium's viewer sizes itself to the frame). It must not carry sandbox — I verified in Electron 41 that even sandbox="allow-scripts allow-same-origin" leaves the frame blank (1985-desktop-sandbox-test.png). Route the kind in SecondaryPanelFilePreview and include pdf in the data:-URL rewrite in buildEnvironmentFilePreview (workspace previews come from a JSON route).
• In apps/mobile: the switch (preview.kind) in src/data/files/file-preview-model.ts and the view in src/screens/files/FilePreviewView.tsx must handle pdf (at minimum map to unsupported; iOS/Android WebViews render PDFs natively, so a WebView would be the real fix). Without this the mobile typecheck fails (TS2366).
• Risks: a 25 MB PDF (daemon non-image limit) becomes a ~33 MB base64 data: URL string on the workspace path; consider a byte route instead, or cap. A browser configured to "download PDFs instead of opening" will trigger a download when the tab opens. The Electron preload complains (sandboxed_renderer.bundle.js script failed to run) once in the console when a same-origin PDF frame loads; harmless but worth checking.

7. PR review

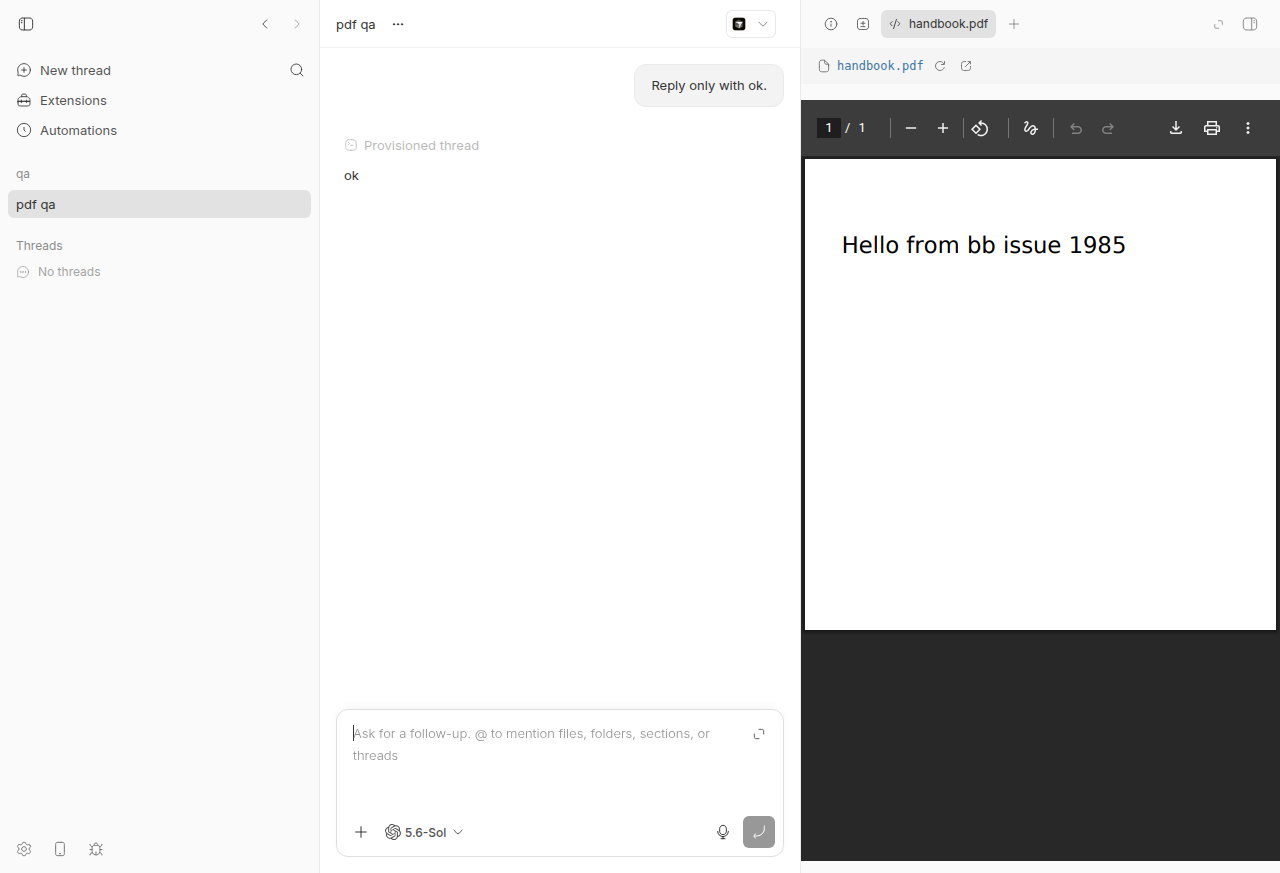

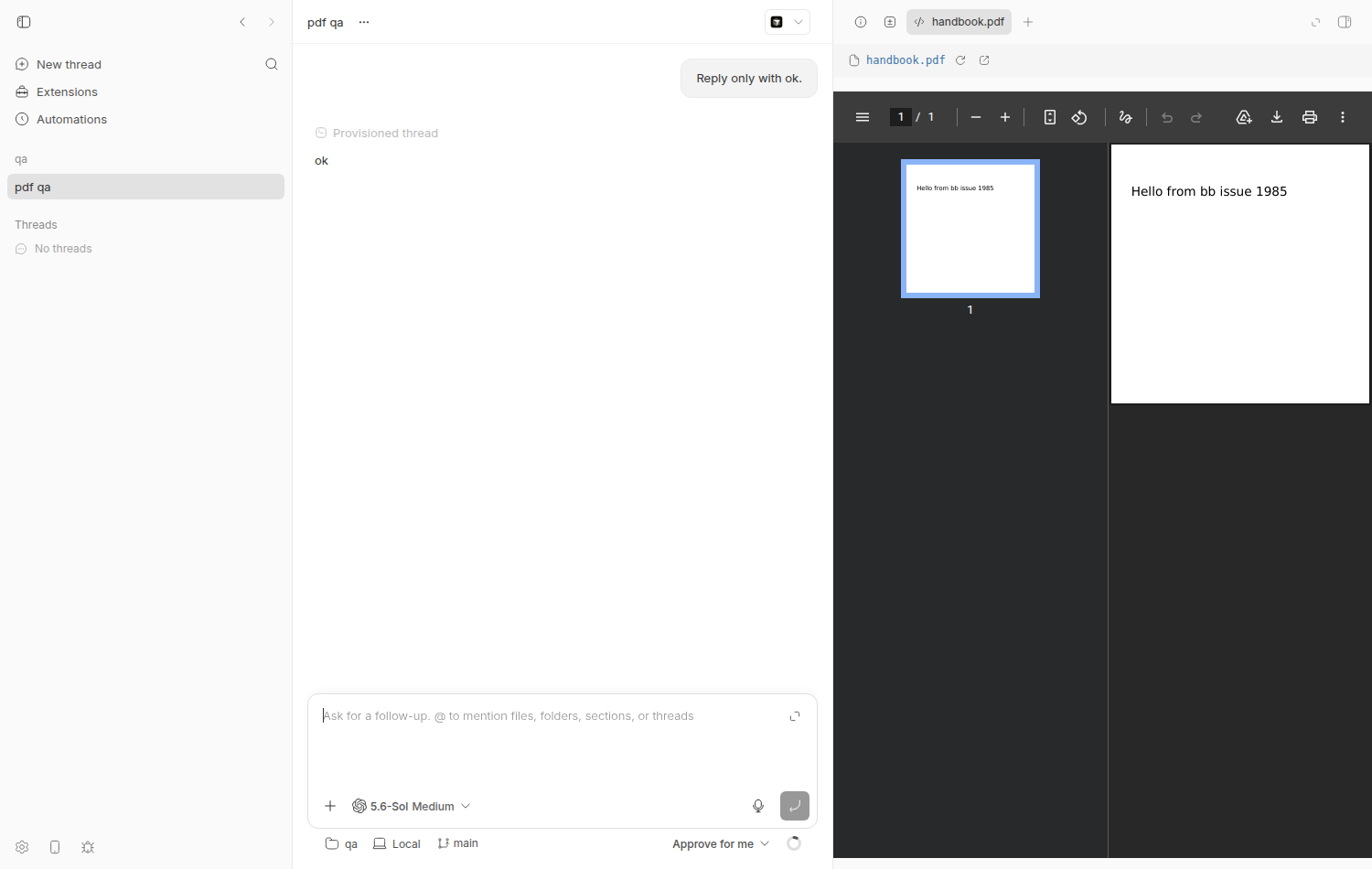

PR #1979 — "Render PDF file previews instead of 'Preview not available'" (jsilets, head e93c47262, base b61ec88)

What it changes: adds a pdf kind to buildFilePreview (checked before the UTF‑8 fallback), a FilePreviewPdf iframe without sandbox, routing in SecondaryPanelFilePreview, pdf in the workspace data:-URL rewrite, a Ladle story, and three tests. No wire changes (correct — no protocol bump needed).

Does it address the root cause? Yes — it is the right layer (client classifier + app renderer), and the mime-before-fallback ordering also fixes the all-ASCII-PDF-as-text edge case. I merged it locally onto c7c66423d (resolving conflicts by moving the classifier hunk into packages/client-core/src/file-preview.ts; diff in pr-1979-rebased-onto-c7c66423d.diff) and it renders the PDF in headed Chromium and in the Electron 41 desktop shell, for both the data: URL (workspace) path and a framed /api/v1/…/files/content URL.

Findings:

@bb/mobile:typecheck: src/data/files/file-preview-model.ts(81,36): error TS2366: Function lacks ending return statement and return type does not include 'undefined'.

Tests I ran on the locally rebased PR: packages/client-core file-preview.test.ts (12 pass, including the two new PDF tests) and my repro test (first assertion now passes; the "all-ASCII is text" documentation test flips to pdf, as intended); apps/app FilePreview.test.tsx + src/hooks/queries (122 pass); turbo typecheck for @bb/client-core and @bb/app pass, @bb/mobile fails (above).

Verdict: REQUEST CHANGES — correct approach and verified working in Chromium and Electron, but it must be rebased onto the @bb/client-core move, handle the pdf kind in apps/mobile, and ideally add a test for the workspace data: URL branch.

8. Related issues

• #1979 — the fix PR reviewed above.
• #1986 — moved the classifier to @bb/client-core; source of the PR conflict and of the mobile consumer.
• #1670 — HEIC previews do not render (same class of gap, needs decoding rather than a branch).
• #520 — CSV previews; the precedent this change follows.

9. Appendix

Commands run

gh issue view 1985 --comments; gh pr view 1979; gh pr diff 1979
pnpm install --frozen-lockfile --prefer-offline; pnpm exec turbo run build
cd packages/client-core && pnpm exec vitest run test/file-preview-pdf-repro.test.ts      # fails on main (see §4a)
scripts/bb-dev-app current                                                            # App :14918 Server :22918 daemon :30918
python3 …  # generate /tmp/bb-1985-qa/handbook.pdf (FlateDecode stream) ; git init + commit
curl -s -X POST $BB_SERVER_URL/api/v1/projects … path=/tmp/bb-1985-qa                # proj_cw26yy9qhd
curl -sD - "$BB_SERVER_URL/api/v1/projects/proj_cw26yy9qhd/files/content?path=handbook.pdf"
curl -s -X POST $BB_SERVER_URL/api/v1/threads … "Reply only with ok." (codex)           # thr_pu2wtuaw77
doobie --headless run doobie-open.js ; bb thread open thr_pu2wtuaw77 handbook.pdf ; doobie run doobie-shot.js
git fetch origin pull/1979/head:pr-1979 ; git checkout -b review-1979 c7c66423d ; git merge --no-commit pr-1979
#   conflicts: FilePreview.stories.tsx, apps/app/src/lib/file-preview.ts -> took main, applied classifier hunk to packages/client-core
pnpm exec turbo run typecheck --filter=@bb/client-core --filter=@bb/app --filter=@bb/mobile   # mobile fails TS2366
Xvfb :150 ; doobie chrome --profile bb1985 --port 49222 ; doobie --connect 49222 run doobie-pr.js
cd apps/desktop && BB_DESKTOP_ELECTRON_ARGS="--remote-debugging-port=49223 --no-sandbox" pnpm run dev
doobie --connect 49223 run doobie-desktop.js / doobie-desktop-apiurl.js / doobie-desktop-sandbox.js
git reset --hard c7c66423d ; cleanup (pnpm dev:stop, kill Xvfb/Chrome/Electron, rm data dir)

PDF generator (Python)

import zlib
content = b"BT /F1 24 Tf 40 400 Td (Hello from bb issue 1985) Tj ET"; comp = zlib.compress(content)
objs = [b"<< /Type /Catalog /Pages 2 0 R >>", b"<< /Type /Pages /Kids [3 0 R] /Count 1 >>",
        b"<< /Type /Page /Parent 2 0 R /MediaBox [0 0 500 500] /Contents 4 0 R /Resources << /Font << /F1 5 0 R >> >> >>",
        b"<< /Length %d /Filter /FlateDecode >>\nstream\n" % len(comp) + comp + b"\nendstream",
        b"<< /Type /Font /Subtype /Type1 /BaseFont /Helvetica >>"]
out = b"%PDF-1.4\n%\xe2\xe3\xcf\xd3\n"; offsets = []
for i, o in enumerate(objs, 1): offsets.append(len(out)); out += b"%d 0 obj\n" % i + o + b"\nendobj\n"
xref = len(out); out += b"xref\n0 %d\n0000000000 65535 f \n" % (len(objs)+1)
for off in offsets: out += b"%010d 00000 n \n" % off
out += b"trailer\n<< /Size %d /Root 1 0 R >>\nstartxref\n%d\n%%%%EOF\n" % (len(objs)+1, xref)
open("/tmp/bb-1985-qa/handbook.pdf","wb").write(out)

Artifacts

• file-preview-pdf-repro.test.ts, unit-test-main.log
• handbook.pdf (test fixture)
• pr-1979-rebased-onto-c7c66423d.diff, pr-1979-mobile-typecheck.log, pr-1979-merge-state.json
• doobie scripts: doobie-open.js, doobie-shot.js, doobie-pr.js, doobie-desktop.js, doobie-desktop-apiurl.js, doobie-desktop-sandbox.js
