#1914 · A rate-limited workflow call reports only 'Workflow worker failed' — the 429 is hidden in a child thread

Bug Priority: Medium Effort: n/a cli plugins workflows open on GitHub 2026-08-19 · base d81fee6f (worktree HEAD 0f6759a74, +2 unrelated UI/tasks commits)

Verdict: REPRODUCED · Root-cause confidence: high

1. TL;DR

When a workflow worker thread dies because the provider rejected the request (here: Claude Code 429 "session limit"), bb workflows status/history, the run record, and the completion notification sent back to the origin agent all say only Workflow worker failed. The 429 details exist, but only as a provider/error event (with errorInfo { category: "rate-limit", providerCode: "rate_limit_event", httpStatusCode: 429 }) inside the hidden child thread.

The actual defect is in the server, not in the workflows plugin. The plugin-facing thread.failed event is built by getLastThreadErrorMessage(), which reads only system/error rows. A provider-originated failure is persisted as provider/error + turn/completed status=failed and never writes a system/error row, so thread.failed fires with error: null. The workflows plugin then falls back to error ?? "Workflow worker failed". A side effect: the workflows plugin's own transient-provider retry classifier (which matches /rate.?limit|429/ on the error text) never sees the real text, so it is dead for every provider-originated failure. The automations plugin has the identical problem ("Turn failed").

Reproduced end to end on a dev instance by pointing Claude Code at a fake Anthropic endpoint that answers 429 with the unified rate-limit headers: the run fails in ~4 s with "error": "Workflow worker failed" while the child thread holds the full 429. Two failing vitest repros (server seam + workflows plugin) are included, plus a small prototype patch that makes the server test pass.

2. Claims vs findings

3. Environment

• bb monorepo worktree at 0f6759a74 (base d81fee6f plus two unrelated commits: #1912 thread TOC breakpoint, #1923 tasks presets); bb-app version 0.39.0; git log d81fee6f..origin/main -- plugins/workflows apps/server/src/services/plugins apps/server/src/services/threads/thread-data.ts is empty → not fixed on main.
• Linux 7.0.0-29-generic (Ubuntu), node v24.18.0, Claude Code CLI 2.1.235, codex-cli 0.148.0 (origin thread only).
• Own dev instance: App http://localhost:11386, Server http://localhost:19386, Host daemon 127.0.0.1:27386, data dir ~/.bb-dev/projects-bb-.claude-worktrees-wf_d5c47f31-487-6-484bd182cef1 (deleted at cleanup).
• Fake Anthropic API: node fake-429.mjs 45929, injected with ANTHROPIC_BASE_URL=http://127.0.0.1:45929 exported before scripts/bb-dev-app current (verified present in the host-daemon process environment).

4. Minimal reproduction

A. Unit-level (fastest, no provider needed)

1. Copy issue-1914-thread-failed-provider-error.test.ts to apps/server/test/services/plugins/ and run it from apps/server: pnpm exec vitest run test/services/plugins/issue-1914-thread-failed-provider-error.test.ts. It installs an observer plugin, seeds an active claude-code thread, and POSTs the exact four events the claude-code provider emits for a hard rate-limit rejection through the real /internal/session/events seam.

   expected: thread.failed payload.error describes the 429
   actual:

    RUN  v4.1.1 /home/sawyer/projects/bb/.claude/worktrees/wf_d5c47f31-487-6/apps/server

    ❯ |@bb/server| test/services/plugins/issue-1914-thread-failed-provider-error.test.ts (1 test | 1 failed) 264ms
        × carries the provider/error (429 rate limit) detail to plugin thread.failed handlers 263ms

   ⎯⎯⎯⎯⎯⎯⎯ Failed Tests 1 ⎯⎯⎯⎯⎯⎯⎯

    FAIL  |@bb/server| test/services/plugins/issue-1914-thread-failed-provider-error.test.ts > issue #1914: thread.failed error for provider-originated failures > carries the provider/error (429 rate limit) detail to plugin thread.failed handlers
   AssertionError: expected null not to be null
    ❯ test/services/plugins/issue-1914-thread-failed-provider-error.test.ts:158:38
       156|       // ... but `error` must describe the 429. On main it is `null`, …
       157|       // workflows plugin shows "Workflow worker failed".
       158|       expect(recorded[0]?.error).not.toBeNull();
          |                                      ^
       159|       expect(recorded[0]?.error).toMatch(/rate.?limit|429|session limi…
       160|     } finally {

   ⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯[1/1]⎯


    Test Files  1 failed (1)
         Tests  1 failed (1)
      Start at  15:32:06
      Duration  2.84s (transform 1.43s, setup 0ms, import 2.49s, tests 264ms, environment 0ms)



   The thread does reach status error and thread.failed fires, but error is null.
2. Copy issue-1914-worker-failed.test.ts to plugins/workflows/src/ and run pnpm exec vitest run src/issue-1914-worker-failed.test.ts from plugins/workflows. It feeds that null into the service exactly as server.ts does:

    RUN  v4.1.1 /home/sawyer/projects/bb/.claude/worktrees/wf_d5c47f31-487-6/plugins/workflows

   stdout | src/issue-1914-worker-failed.test.ts > issue #1914: workflow call error for a rate-limited worker > surfaces the provider failure instead of 'Workflow worker failed'
   [issue-1914] call.error = "Workflow worker failed"
   [issue-1914] run.error  = "Workflow worker failed"
   [issue-1914] retries    = 0

    ❯ src/issue-1914-worker-failed.test.ts (1 test | 1 failed) 289ms
        × surfaces the provider failure instead of 'Workflow worker failed' 289ms

   ⎯⎯⎯⎯⎯⎯⎯ Failed Tests 1 ⎯⎯⎯⎯⎯⎯⎯

    FAIL  src/issue-1914-worker-failed.test.ts > issue #1914: workflow call error for a rate-limited worker > surfaces the provider failure instead of 'Workflow worker failed'
   AssertionError: expected 'Workflow worker failed' not to be 'Workflow worker failed' // Object.is equality
    ❯ src/issue-1914-worker-failed.test.ts:146:29
       144|
       145|     // Expected: the call error names the rate limit (category/429/mes…
       146|     expect(call?.error).not.toBe("Workflow worker failed");
          |                             ^
       147|     expect(call?.error ?? "").toMatch(/rate.?limit|429/i);
       148|

   ⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯[1/1]⎯


    Test Files  1 failed (1)
         Tests  1 failed (1)
      Start at  15:32:09
      Duration  621ms (transform 134ms, setup 0ms, import 249ms, tests 289ms, environment 0ms)



B. Live end-to-end (real claude-code process, real 429)

1. Start a fake Anthropic API that answers every call with HTTP 429 and the unified rate-limit headers (fake-429.mjs): node fake-429.mjs 45929. Sanity check: ANTHROPIC_BASE_URL=http://127.0.0.1:45929 claude -p "Reply only with ok." --output-format stream-json --verbose prints a rate_limit_event with status: "rejected" immediately (no retries).
2. Start a dev instance with the override in its environment: export ANTHROPIC_BASE_URL=http://127.0.0.1:45929; scripts/bb-dev-app current. Enable the workflows plugin: curl -X POST $BB_SERVER_URL/api/v1/plugins/workflows/enable.
3. Create a scratch git repo and a project (POST /api/v1/projects with a local_path source), then spawn an origin thread with a cheap provider: bb thread spawn --project <proj> --environment /tmp/bb-1914/qa-repo --provider codex --prompt "Reply only with ok." --title "1914 origin" → thr_4nt62zknyn (idle, env env_wbxyk8aus8).
4. Put this workflow inside the workspace (collect.workflow.js):

   export const meta = {
     name: "collect-1914",
     description: "Issue 1914 repro: one claude-code worker that hits a 429",
     phases: [{ title: "Collect", detail: "Single worker" }],
   };
   phase("Collect");
   const out = await agent("Reply only with ok.", {
     provider: "claude-code",
     model: "claude-opus-5[1m]",
     reasoningLevel: "low",
     title: "1914 worker",
   });
   return out;


5. From the origin thread context (BB_THREAD_ID=thr_4nt62zknyn BB_PROJECT_ID=<proj> BB_ENVIRONMENT_ID=env_wbxyk8aus8), run bb workflows run --file /tmp/bb-1914/qa-repo/collect.workflow.js:

   {"runId":"wfr_4469d4b6-7bef-4f17-ad96-430190dc103f","name":"collect-1914","status":"queued"}

6. bb workflows status wfr_4469d4b6-7bef-4f17-ad96-430190dc103f a few seconds later:

   expected: something like  "error": "rate limited (429): You've hit your session limit · resets 6:24pm (UTC)"
   actual (excerpt; full JSON in appendix):
     "status": "failed",
     "phase": "Collect",
     "error": "Workflow worker failed",
     "calls": { "total": 1, "queued": 0, "running": 0, "succeeded": 0, "failed": 1, "cancelled": 0 },
     "startedAt": 1787153296809,
     "finishedAt": 1787153301255

7. bb workflows history wfr_4469d4b6-… call record (excerpt):

   {
     "id": "wfc_50c38b22-9297-4105-ba8c-9628efaad62a",
     "callIndex": 0,
     "resolvedProvider": "claude-code",
     "resolvedModel": "claude-opus-5[1m]",
     "status": "failed",
     "childThreadId": "thr_u982areftg",
     "providerRetryAttempts": 0,
     "error": "Workflow worker failed",
     "startedAt": 1787153297760,
     "finishedAt": 1787153301251
   }

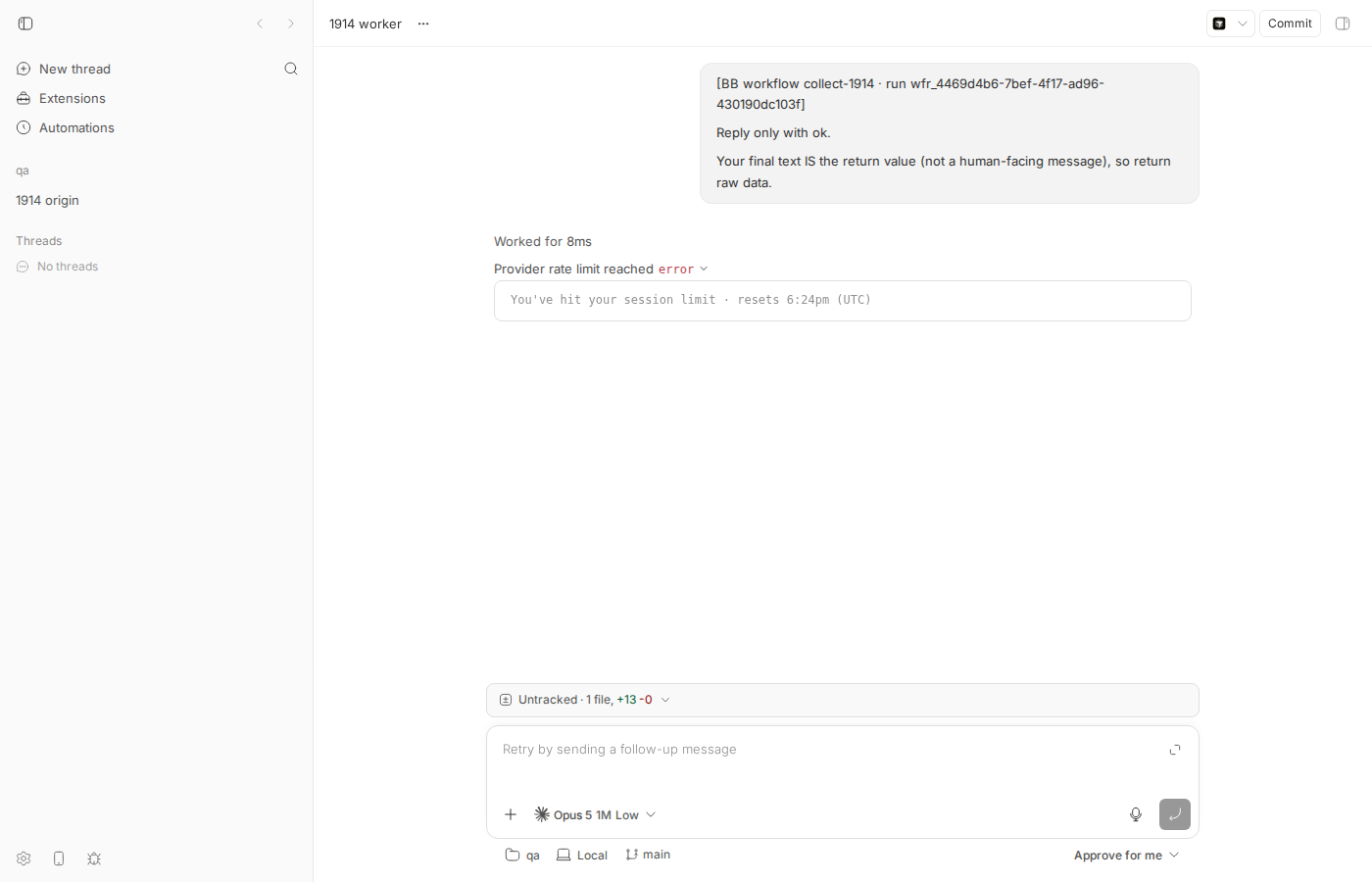

8. The hidden child thread holds the real cause. sqlite3 bb.db "select sequence,type from events where thread_id='thr_u982areftg' order by sequence":

   1|client/turn/requested
   2|client/thread/start
   3|thread/identity
   4|turn/started
   5|turn/input/accepted
   6|provider/rateLimits/updated
   7|item/completed
   8|thread/contextWindowUsage/updated
   9|thread/tokenUsage/updated
   10|provider/error
   11|turn/completed


   No system/error row. bb thread log thr_u982areftg --json (relevant events):

   provider/rateLimits/updated  {"providerThreadId": "3f6e15b2-0592-499a-a9db-6c66c0613e8a", "rateLimits": {"providerId": "claude-code", "status": "blocked", "kind": "subscription-window", "windows": [{"providerKey": "five_hour", "label": "Five-hour limit", "status": "blocked", "resetsAtMs": 1787163875000}], "reachedReason": "five_hour", "overageStatus": "rejected", "overageReason": "org_level_disabled"}}
   item/completed  {"providerThreadId": "3f6e15b2-0592-499a-a9db-6c66c0613e8a", "item": {"type": "agentMessage", "id": "454199c6-e204-4fcd-ab42-34ba257aa607", "text": "You've hit your session limit \u00b7 resets 6:24pm (UTC)"}}
   provider/error  {"providerThreadId": "3f6e15b2-0592-499a-a9db-6c66c0613e8a", "message": "Provider error", "detail": "You've hit your session limit \u00b7 resets 6:24pm (UTC)", "errorInfo": {"category": "rate-limit", "providerCode": "rate_limit_event", "httpStatusCode": 429}}
   turn/completed  {"providerThreadId": "3f6e15b2-0592-499a-a9db-6c66c0613e8a", "status": "failed", "providerCheckpointId": "3b923597-4608-4c0e-83e2-d65ba47b2716"}

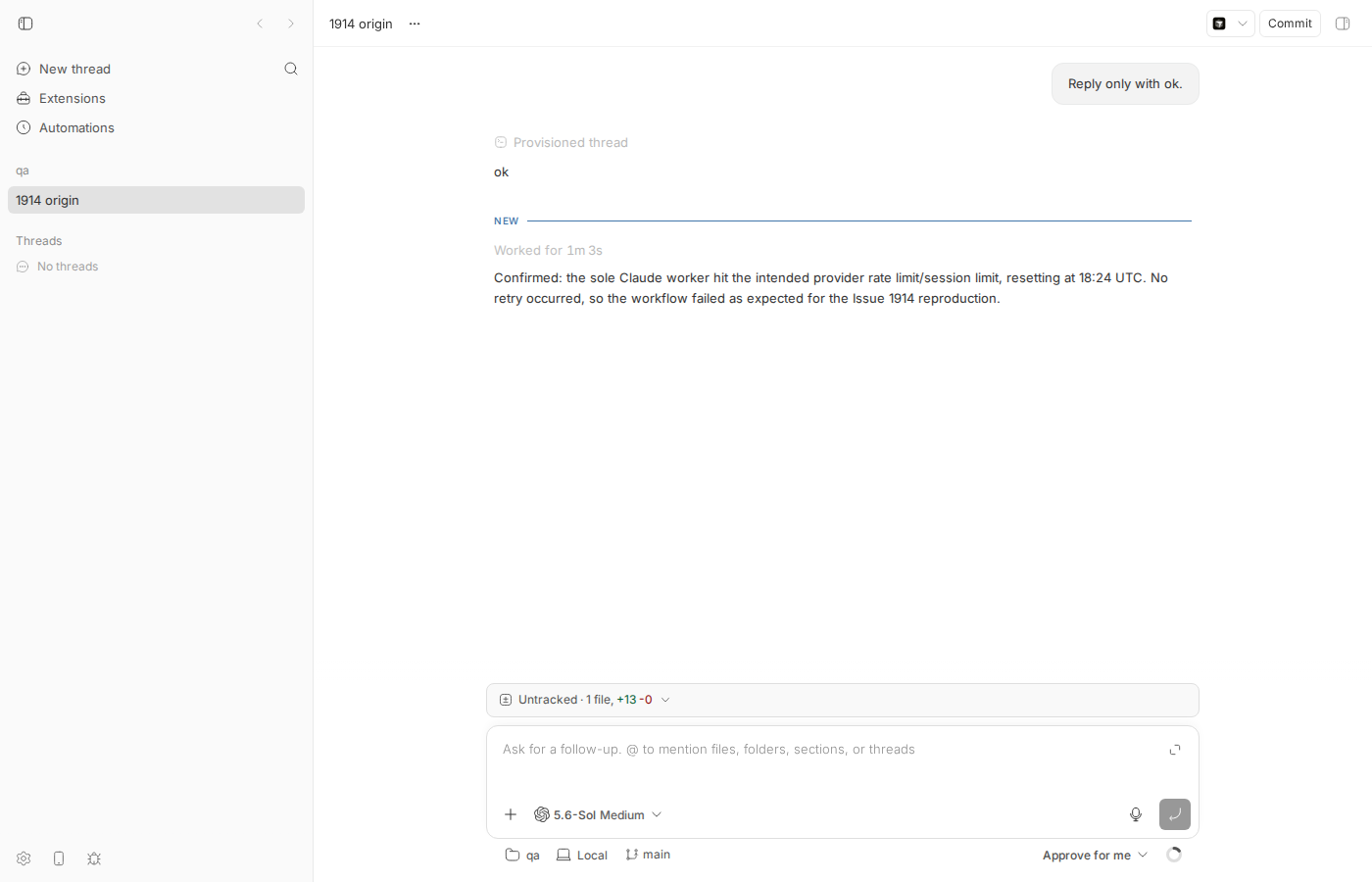

9. The notification the workflows plugin sent back to the origin agent is equally opaque (event 19 on the origin thread):

   1|client/turn/requested|{"direction":"outbound","source":"spawn","initiator":"user","request":{"method":"thread/start","params":{}},"requestId":"creq_4bqp7awiab","senderThreadId":null,"input":[{"type":"text","text":"Reply only with ok.","mentions":[]}],"target":{"kind":"thread-start"},"execution":{"model":"gpt-5.6-sol","permissionMode":"auto","reasoningLevel":"medium","serviceTier":"default","source":"client/turn/requested"}}
   19|client/turn/requested|{"direction":"outbound","source":"tell","initiator":"user","request":{"method":"turn/start","params":{}},"requestId":"creq_aqsy3q2ufk","senderThreadId":null,"input":[{"type":"text","text":"[BB workflow finished · wfr_4469d4b6-7bef-4f17-ad96-430190dc103f]\n\nRun wfr_4469d4b6-7bef-4f17-ad96-430190dc103f (collect-1914) failed.\nError: Workflow worker failed\nRun `bb workflows status wfr_4469d4b6-7bef-4f17-ad96-430190dc103f` for authoritative details.","mentions":[],"visibility":"agent-only"}],"target":{"kind":"new-turn"},"execution":{"model":"gpt-5.6-sol","permissionMode":"auto","reasoningLevel":"medium","serviceTier":"default","source":"client/turn/requested"}}


   The origin (codex) agent then spent a turn investigating ("Worked for 1m 3s" in the screenshot) — the exact cost the issue describes.

Repro files: 1914/repro/ (tests, fake API, workflow, helper scripts, raw outputs, prototype patch).

5. Root cause

Chain:

1. The claude-code provider plugin translates a hard rate-limit rejection into provider/rateLimits/updated, a provider/error carrying errorInfo, and a turn/completed status: "failed" (no error text on the turn/completed): plugins/provider-claude-code/src/event-translation.ts:1466 and the rate_limit_event case at plugins/provider-claude-code/src/event-translation.ts:1526. Nothing on this path emits system/error; that event type is reserved for bb-side failures (provider process exit apps/host-daemon/src/runtime-manager.ts:1282, turn-start watchdog packages/agent-runtime/src/runtime.ts:392, command failures apps/server/src/services/threads/thread-lifecycle.ts:1712).
2. The server turns turn/completed failed into the lifecycle event run.failed → thread status error: apps/server/src/internal/turn-completed-events.ts:21.
3. Entering error emits the plugin event thread.failed: apps/server/src/services/plugins/plugin-thread-events.ts:44 → apps/server/src/services/plugins/plugin-service.ts:1473, whose error field is getLastThreadErrorMessage(db, thread.id).
4. getLastThreadErrorMessage only looks at system/error rows: apps/server/src/services/threads/thread-data.ts:167 via packages/db/src/data/events.ts:3049 (eq(events.type, "system/error")). The contract even documents this: packages/plugin-sdk/src/backend-contract.ts:149 — "error is the latest system/error event message, when one exists". So for every provider-originated failure the payload is error: null.
5. The workflows plugin maps null to the generic string: plugins/workflows/src/server.ts:233 → plugins/workflows/src/service.ts:1519 failThreadCall(threadId, error ?? "Workflow worker failed"). That string becomes the call error, the run error (wakeCall rejects with it, plugins/workflows/src/service.ts:900), the status/history output, and the origin notification.

Deeper consequence: the workflows plugin already contains a transient-provider retry path keyed on the error text — plugins/workflows/src/service.ts:104 matches /rate.?limit/, 429, overload, etc., and plugins/workflows/src/service.ts:866 retries up to two times. Because the text never arrives for provider-originated failures, that classifier only ever sees "Workflow worker failed", so it is effectively dead for the cases it was written for (our call shows providerRetryAttempts: 0). The same null reaches the automations plugin, which records "Turn failed" (plugins/automations/src/run.ts:325).

Why the report's two cases look alike: a bb-side stall/crash writes system/error and therefore propagates real text (e.g. "Provider process exited…"), while a provider 429 propagates nothing; the workflows fallback string is what makes them look alike, but the missing data is upstream of it.

6. Proposed fix (first principles)

Fix at the server boundary, where the data already lives, so every plugin consumer (workflows, automations, third-party) benefits:

1. packages/db: add a query that returns the latest failure-describing row for a thread across system/error and provider/error (ideally restricted to events at/after the last root turn/started so a stale willRetry: true provider error from an earlier, recovered turn cannot leak into a later unrelated failure).
2. apps/server getLastThreadErrorMessage: format provider/error as detail ?? message plus (category, HTTP nnn, providerCode). Optionally extend the thread.failed payload with a structured errorInfo: ProviderErrorInfo | null (and the rate-limit resetsAtMs from the latest provider/rateLimits/updated) so plugins can render "rate limited (429), resets HH:MM" without parsing text. A new payload field is new public plugin API → follow the AGENTS.md experimental_/docs/api_to_audit.md rule, and update the doc comment in backend-contract.ts. No host-daemon wire change is involved (server-internal), so no HOST_DAEMON_PROTOCOL_VERSION bump.
3. plugins/workflows: keep error ?? "Workflow worker failed" as the last-resort fallback, but also decide retry policy from the structured category: a 429 with a blocked subscription window resetting hours away should not burn the two 1 s/4 s retries (and should probably fail the call immediately with a clear "rate limited, resets …" message), whereas overload/5xx should.

A minimal prototype of steps 1–2 (prototype-fix.patch, 84 lines) makes the server repro test pass together with the existing plugin-thread-events.test.ts (12/12) and typechecks @bb/server; it is not scoped to the failing turn yet, which is the one thing to add before shipping:

diff --git a/apps/server/src/services/threads/thread-data.ts b/apps/server/src/services/threads/thread-data.ts
index 9cc53bc57..59394b3ea 100644
--- a/apps/server/src/services/threads/thread-data.ts
+++ b/apps/server/src/services/threads/thread-data.ts
@@ -1,7 +1,7 @@
 import {
   findStoredEventRow as findStoredEventRowRecord,
   getLatestThreadOutputEventRow,
-  getLatestThreadSystemErrorEventRow,
+  getLatestThreadFailureEventRow,
   listStoredEventRows as listStoredEventRowRecords,
 } from "@bb/db";
 import type { DbConnection, StoredEventRow } from "@bb/db";
@@ -169,8 +169,20 @@ export function getLastThreadErrorMessage(
   db: DbConnection,
   threadId: string,
 ): string | null {
-  const row = getLatestThreadSystemErrorEventRow(db, { threadId });
+  const row = getLatestThreadFailureEventRow(db, { threadId });
   if (!row) return null;
   const eventRow = parseStoredEventRow(row);
-  return eventRow.type === "system/error" ? eventRow.data.message : null;
+  if (eventRow.type === "system/error") return eventRow.data.message;
+  if (eventRow.type === "provider/error") {
+    const { message, detail, errorInfo } = eventRow.data;
+    const text = detail && detail.length > 0 ? detail : message;
+    if (!errorInfo) return text;
+    const parts: string[] = [errorInfo.category];
+    if (errorInfo.httpStatusCode !== null) {
+      parts.push(`HTTP ${errorInfo.httpStatusCode}`);
+    }
+    if (errorInfo.providerCode !== null) parts.push(errorInfo.providerCode);
+    return `${text} (${parts.join(", ")})`;
+  }
+  return null;
 }
diff --git a/packages/db/src/data/events.ts b/packages/db/src/data/events.ts
index e7de63b63..1f5c55eea 100644
--- a/packages/db/src/data/events.ts
+++ b/packages/db/src/data/events.ts
@@ -3063,6 +3063,31 @@ export function getLatestThreadSystemErrorEventRow(
   );
 }

+/**
+ * Latest failure-describing event for a thread: either a bb-side
+ * `system/error` or a provider-originated `provider/error` (for example a
+ * 429 rate limit), whichever was stored last.
+ */
+export function getLatestThreadFailureEventRow(
+  db: DbConnection,
+  args: GetLatestThreadSystemErrorEventRowArgs,
+): StoredEventRow | null {
+  return (
+    db
+      .select(storedEventRowFields)
+      .from(events)
+      .where(
+        and(
+          eq(events.threadId, args.threadId),
+          inArray(events.type, ["system/error", "provider/error"]),
+        ),
+      )
+      .orderBy(desc(events.sequence))
+      .limit(1)
+      .get() ?? null
+  );
+}
+
 export function getLatestThreadSequence(
   db: DbConnection,
   args: GetLatestThreadSequenceArgs,
diff --git a/packages/db/src/data/index.ts b/packages/db/src/data/index.ts
index 6e599d718..c14ca5415 100644
--- a/packages/db/src/data/index.ts
+++ b/packages/db/src/data/index.ts
@@ -339,6 +339,7 @@ export {
   getStoredTurnRequestEventForTurn,
   getLatestThreadOutputEventRow,
   getLatestThreadSystemErrorEventRow,
+  getLatestThreadFailureEventRow,
   getLatestThreadSequence,
   getLatestStoredEventRowByType,
   insertEvents,

Risk: the workflows retry classifier will start matching rate-limit text and retry twice (5 s total) before failing; harmless but wasteful, hence step 3.

7. PR review

No open PRs are linked to this issue.

8. Related issues

• Automations plugin shows the same "Turn failed" for provider-originated failures (same thread.failed payload) — not filed separately; fixing the server path fixes both.
• Workflows transient-provider retry (#733 introduced isRetryableProviderFailure) is dead for provider-originated failures for the same reason.

9. Appendix

{
  "id": "wfr_4469d4b6-7bef-4f17-ad96-430190dc103f",
  "projectId": "proj_wqncx5cr2y",
  "originThreadId": "thr_4nt62zknyn",
  "environmentId": "env_wbxyk8aus8",
  "originProvider": "codex",
  "originProviderTruncated": false,
  "originModel": "gpt-5.6-sol",
  "originModelTruncated": false,
  "originReasoningLevel": "medium",
  "originReasoningLevelTruncated": false,
  "originPermissionMode": "auto",
  "originPermissionModeTruncated": false,
  "name": "collect-1914",
  "nameTruncated": false,
  "sourceHash": "a372a4af11f824d5cee34119b02be145fe918dcb47847cc8020b6b77f6a552b9",
  "sourceBytes": 372,
  "settings": {
    "maxActiveRuns": 4,
    "maxConcurrentAgents": 8,
    "maxAgentCalls": 100,
    "totalRunTimeoutMs": 86400000,
    "retentionDays": 30,
    "maxNotificationBytes": 16384
  },
  "status": "failed",
  "phase": "Collect",
  "phaseTruncated": false,
  "resumedFromRunId": null,
  "result": null,
  "resultAvailable": false,
  "resultOmitted": false,
  "error": "Workflow worker failed",
  "errorTruncated": false,
  "calls": {
    "total": 1,
    "queued": 0,
    "running": 0,
    "succeeded": 0,
    "failed": 1,
    "cancelled": 0
  },
  "notification": {
    "outcome": "delivered",
    "attemptCount": 1,
    "nextAttemptAt": null,
    "error": null,
    "errorTruncated": false
  },
  "createdAt": 1787153296600,
  "startedAt": 1787153296809,
  "finishedAt": 1787153301255,
  "history": {
    "format": "jsonl",
    "pageUsage": "bb workflows history wfr_4469d4b6-7bef-4f17-ad96-430190dc103f --cursor 0 --limit 10",
    "fileUsage": "mkdir -p \"$BB_THREAD_STORAGE/workflows\" && bb workflows history wfr_4469d4b6-7bef-4f17-ad96-430190dc103f --cursor 0 --limit 10 > \"$BB_THREAD_STORAGE/workflows/wfr_4469d4b6-7bef-4f17-ad96-430190dc103f.jsonl\""
  }
}

[fake-429] listening on 45929
[fake-429] #1 HEAD /api/hello (0 bytes)
[fake-429] #2 POST /v1/messages?beta=true (111264 bytes)
[fake-429] #3 HEAD /api/hello (0 bytes)
[fake-429] #4 POST /v1/messages?beta=true (99102 bytes)
[fake-429] #5 HEAD /api/hello (0 bytes)
[fake-429] #6 POST /v1/messages?beta=true (99102 bytes)
[fake-429] #7 HEAD /api/hello (0 bytes)
[fake-429] #8 POST /v1/messages?beta=true (99102 bytes)
[fake-429] #9 HEAD /api/hello (0 bytes)
[fake-429] #10 POST /v1/messages?beta=true (99102 bytes)
[fake-429] #11 HEAD /api/hello (0 bytes)
[fake-429] #12 HEAD /api/hello (0 bytes)
[fake-429] #13 POST /v1/messages?beta=true (99965 bytes)
[fake-429] #14 POST /v1/messages?beta=true (136716 bytes)
[fake-429] #15 HEAD /api/hello (0 bytes)
[fake-429] #16 HEAD /api/hello (0 bytes)
[fake-429] #17 HEAD /api/hello (0 bytes)
[fake-429] #18 HEAD /api/hello (0 bytes)
[fake-429] #19 HEAD /api/hello (0 bytes)
[fake-429] #20 HEAD /api/hello (0 bytes)
[fake-429] #21 HEAD /api/hello (0 bytes)
[fake-429] #22 HEAD /api/hello (0 bytes)
[fake-429] #23 POST /v1/messages?beta=true (99102 bytes)
[fake-429] #24 POST /v1/messages?beta=true (99965 bytes)

/**
 * Repro for get-bb/bb#1914.
 *
 * A provider-originated failure (Claude Code 429 "rate_limit_event") is
 * persisted as `provider/rateLimits/updated` + `provider/error` (with
 * errorInfo) + `turn/completed status=failed`. No `system/error` row is ever
 * written on that path. The plugin `thread.failed` payload builds its `error`
 * field ONLY from the latest `system/error` row, so plugin consumers such as
 * the workflows plugin receive `error: null` and fall back to the opaque
 * "Workflow worker failed" string.
 *
 * Events are ingested through the REAL host-daemon seam
 * (POST /internal/session/events), which is what applies `run.failed` and
 * fires the plugin event.
 */
import { mkdir, mkdtemp, rm, writeFile } from "node:fs/promises";
import { tmpdir } from "node:os";
import { join } from "node:path";
import { getThread } from "@bb/db";
import { threadScope, turnScope } from "@bb/domain";
import { groupHostDaemonEvents } from "@bb/host-daemon-contract";
import { describe, expect, it, vi } from "vitest";
import {
  createTestDaemonEventEnvelope,
  internalAuthHeaders,
} from "../../helpers/commands.js";
import { seedThreadFixture } from "../../helpers/seed.js";
import { createTestAppHarness } from "../../helpers/test-app.js";

interface RecordedFailedPayload {
  thread: { id: string; status: string };
  error: string | null;
}

const globals = globalThis as Record<string, unknown>;

describe("issue #1914: thread.failed error for provider-originated failures", () => {
  it("carries the provider/error (429 rate limit) detail to plugin thread.failed handlers", async () => {
    const recorded: RecordedFailedPayload[] = [];
    globals.__issue1914Failed = recorded;
    const harness = await createTestAppHarness();
    const workDir = await mkdtemp(join(tmpdir(), "bb-issue-1914-"));
    const rootDir = join(workDir, "bb-plugin-observer");
    await mkdir(rootDir, { recursive: true });
    await writeFile(
      join(rootDir, "package.json"),
      JSON.stringify({
        name: "bb-plugin-observer",
        version: "0.1.0",
        bb: {
          name: "Observer fixture",
          description: "Thread events plugin fixture.",
          branding: { icon: "Zap" },
          server: "./server.ts",
        },
      }),
    );
    await writeFile(
      join(rootDir, "server.ts"),
      `
      export default function plugin(bb: any) {
        bb.events.on("thread.failed", (payload: any) => {
          (globalThis as any).__issue1914Failed.push(payload);
        });
      }
    `,
    );
    const entry = await harness.pluginService.installPath(rootDir);
    expect(entry.status).toBe("running");
    try {
      const { host, session, thread } = seedThreadFixture(harness, {
        thread: { status: "active", providerId: "claude-code" },
      });
      const turnId = "turn-1914";
      // Exactly the event shapes the claude-code provider plugin emits for a
      // hard rate-limit rejection (plugins/provider-claude-code/src/event-translation.ts
      // `case "rate_limit_event"` + the following `result` message).
      const response = await harness.app.request("/internal/session/events", {
        method: "POST",
        headers: internalAuthHeaders(harness, { hostId: host.id }),
        body: JSON.stringify({
          sessionId: session.id,
          eventGroups: groupHostDaemonEvents([
            createTestDaemonEventEnvelope({
              threadId: thread.id,
              event: {
                type: "turn/started",
                threadId: thread.id,
                providerThreadId: "claude-session-1",
                scope: turnScope(turnId),
              },
            }),
            createTestDaemonEventEnvelope({
              threadId: thread.id,
              event: {
                type: "provider/rateLimits/updated",
                threadId: thread.id,
                providerThreadId: "claude-session-1",
                scope: threadScope(),
                rateLimits: {
                  providerId: "claude-code",
                  status: "blocked",
                  kind: "subscription-window",
                  windows: [
                    {
                      providerKey: "five_hour",
                      label: "5h",
                      status: "blocked",
                      resetsAtMs: 1_800_000_000_000,
                    },
                  ],
                  reachedReason: "five_hour",
                  overageStatus: "rejected",
                  overageReason: "org_level_disabled",
                },
              },
            }),
            createTestDaemonEventEnvelope({
              threadId: thread.id,
              event: {
                type: "provider/error",
                threadId: thread.id,
                providerThreadId: "claude-session-1",
                scope: turnScope(turnId),
                message: "Provider error",
                detail:
                  "You've hit your session limit - resets 2:40pm (rate_limit_event, HTTP 429)",
                errorInfo: {
                  category: "rate-limit",
                  providerCode: "rate_limit_event",
                  httpStatusCode: 429,
                },
              },
            }),
            createTestDaemonEventEnvelope({
              threadId: thread.id,
              event: {
                type: "turn/completed",
                threadId: thread.id,
                providerThreadId: "claude-session-1",
                scope: turnScope(turnId),
                status: "failed",
              },
            }),
          ]),
        }),
      });
      expect(response.status).toBe(200);

      // The thread really did land in `error` ...
      expect(getThread(harness.db, thread.id)?.status).toBe("error");
      // ... and the plugin got a thread.failed ...
      await vi.waitFor(() => expect(recorded).toHaveLength(1));
      expect(recorded[0]?.thread.id).toBe(thread.id);
      expect(recorded[0]?.thread.status).toBe("error");
      // ... but `error` must describe the 429. On main it is `null`, so the
      // workflows plugin shows "Workflow worker failed".
      expect(recorded[0]?.error).not.toBeNull();
      expect(recorded[0]?.error).toMatch(/rate.?limit|429|session limit/i);
    } finally {
      delete globals.__issue1914Failed;
      await harness.pluginService.stop();
      await rm(workDir, { recursive: true, force: true });
      await harness.cleanup();
    }
  });
});

/**
 * Repro for get-bb/bb#1914 (workflows plugin side).
 *
 * The server fires `thread.failed` with `error: null` for provider-originated
 * failures (see apps/server/test/services/plugins/issue-1914-*.test.ts). The
 * workflows plugin then settles the call with the opaque string
 * "Workflow worker failed", and its transient-provider retry path (which
 * matches /rate.?limit|429/ on the error text) never fires.
 */
import { createFakePluginHost } from "@get-bb/plugin-sdk/testing";
import { afterEach, describe, expect, it } from "vitest";
import { getCall, getRunRequired, migrations } from "./data.js";
import { createWorkflowService } from "./service.js";

async function eventually(
  assertion: () => void | Promise<void>,
  timeoutMs = 3_000,
): Promise<void> {
  const deadline = Date.now() + timeoutMs;
  while (true) {
    try {
      await assertion();
      return;
    } catch (error) {
      if (Date.now() >= deadline) throw error;
      await new Promise((resolve) => setTimeout(resolve, 10));
    }
  }
}

function availableModel(model: string) {
  return {
    id: model,
    model,
    displayName: model,
    description: "test",
    supportedReasoningEfforts: [
      { reasoningEffort: "medium", description: "test" },
    ],
    defaultReasoningEffort: "medium",
    isDefault: true,
  };
}

describe("issue #1914: workflow call error for a rate-limited worker", () => {
  const hosts: Array<ReturnType<typeof createFakePluginHost>["harness"]> = [];
  afterEach(async () => {
    await Promise.all(hosts.map((host) => host.dispose()));
    hosts.length = 0;
  });

  function setup() {
    let childCount = 0;
    const { bb, harness } = createFakePluginHost({
      pluginId: "workflows",
      sdk: {
        threads: {
          get: async ({ threadId }) =>
            ({
              id: threadId,
              environmentId: "environment-1",
              providerId: "claude-code",
              status: threadId === "origin" ? "idle" : "working",
            }) as never,
          defaultExecutionOptions: async () => ({
            model: "model-a",
            reasoningLevel: "medium",
            permissionMode: "accept-edits",
            serviceTier: "default",
            source: "default",
          }),
          spawn: async () => {
            childCount += 1;
            return { id: `child-${childCount}` } as never;
          },
          send: async () => ({ ok: true }),
          stop: async () => ({ ok: true }),
        },
        providers: {
          list: async () => [
            {
              id: "claude-code",
              displayName: "Claude Code",
              logoUrl: null,
              available: true,
              capabilities: {
                supportsThreadArchive: true,
                supportsThreadRename: true,
                supportsServiceTier: true,
                supportsNativeUserQuestion: false,
                supportsFork: true,
                permissionModes: ["accept-edits", "auto", "full"],
              },
              composerActions: [],
            },
          ],
          models: async () => ({
            providers: [],
            models: [availableModel("model-a")],
            selectedOnlyModels: [],
            modelLoadError: null,
          }),
        },
      },
    });
    hosts.push(harness);
    const db = bb.storage.database();
    bb.storage.migrate(db, migrations);
    const service = createWorkflowService(bb, db);
    return { bb, db, service, harness, childCount: () => childCount };
  }

  it("surfaces the provider failure instead of 'Workflow worker failed'", async () => {
    const test = setup();
    const controller = new AbortController();
    const worker = test.service.runWorker(controller.signal);
    const run = await test.service.start({
      projectId: "project-test",
      originThreadId: "origin",
      source: `export const meta = { name: "collect", description: "t" };
        return await agent("Collect");`,
      args: null,
      resumedFromRunId: null,
    });
    await eventually(() => expect(test.childCount()).toBe(1));

    // This is exactly what plugins/workflows/src/server.ts receives from
    // bb.events.on("thread.failed") when the child hit a Claude 429:
    // the server's payload has `error: null`.
    test.service.onThreadFailed("child-1", null);

    await eventually(() => {
      expect(getRunRequired(test.db, run.id).status).toBe("failed");
    });
    const call = getCall(test.db, run.id, 0);
    const runRow = getRunRequired(test.db, run.id);
    // Document what main produces today:
    // eslint-disable-next-line no-console
    console.log("[issue-1914] call.error =", JSON.stringify(call?.error));
    // eslint-disable-next-line no-console
    console.log("[issue-1914] run.error  =", JSON.stringify(runRow.error));
    // eslint-disable-next-line no-console
    console.log("[issue-1914] retries    =", call?.providerRetryAttempts);

    // Expected: the call error names the rate limit (category/429/message).
    expect(call?.error).not.toBe("Workflow worker failed");
    expect(call?.error ?? "").toMatch(/rate.?limit|429/i);

    controller.abort();
    await worker;
  });
});

// Fake Anthropic API that answers every request with HTTP 429 + the unified
// rate-limit headers Claude Code turns into a `rate_limit_event` (status
// "rejected"). Point Claude Code at it with ANTHROPIC_BASE_URL.
//   node fake-429.mjs <port>
import http from "node:http";
const port = Number(process.argv[2] ?? 45929);
const resetsAt = Math.floor(Date.now() / 1000) + 3 * 3600;
let n = 0;
http
  .createServer((req, res) => {
    let body = "";
    req.on("data", (c) => (body += c));
    req.on("end", () => {
      n += 1;
      console.log(`[fake-429] #${n} ${req.method} ${req.url} (${body.length} bytes)`);
      res.writeHead(429, {
        "content-type": "application/json",
        "anthropic-ratelimit-unified-status": "rejected",
        "anthropic-ratelimit-unified-reset": String(resetsAt),
        "anthropic-ratelimit-unified-5h-status": "rejected",
        "anthropic-ratelimit-unified-5h-reset": String(resetsAt),
        "anthropic-ratelimit-unified-representative-claim": "five_hour",
        "anthropic-ratelimit-unified-overage-status": "rejected",
        "anthropic-ratelimit-unified-overage-disabled-reason": "org_level_disabled",
        "retry-after": "10800",
        "request-id": `req_fake_${n}`,
      });
      res.end(
        JSON.stringify({
          type: "error",
          error: {
            type: "rate_limit_error",
            message: "You've hit your session limit - resets 2:40pm",
          },
          request_id: `req_fake_${n}`,
        }),
      );
    });
  })
  .listen(port, "127.0.0.1", () =>
    console.log(`[fake-429] listening on ${port}`),
  );

gh issue view 1914 --repo get-bb/bb --comments
pnpm install --frozen-lockfile --prefer-offline; pnpm exec turbo run build
git fetch origin main; git log d81fee6f..origin/main --oneline      # 2 unrelated commits
# code trace
grep -rn "Workflow worker failed" plugins/workflows/src
grep -rn "thread.failed" apps/server/src packages/plugin-sdk/src plugins/*/src
# unit repros
cd apps/server && pnpm exec vitest run test/services/plugins/issue-1914-thread-failed-provider-error.test.ts
cd plugins/workflows && pnpm exec vitest run src/issue-1914-worker-failed.test.ts
# live repro
node /tmp/bb-reports/issues/1914/repro/fake-429.mjs 45929 &
ANTHROPIC_BASE_URL=http://127.0.0.1:45929 claude -p "Reply only with ok." --output-format stream-json --verbose
export ANTHROPIC_BASE_URL=http://127.0.0.1:45929; scripts/bb-dev-app current
curl -X POST http://localhost:19386/api/v1/plugins/workflows/enable
curl -X POST http://localhost:19386/api/v1/projects -d '{"name":"qa","source":{"type":"local_path","path":"/tmp/bb-1914/qa-repo","hostId":"host_nccjkbdw72"}}'
bb thread spawn --project proj_wqncx5cr2y --environment /tmp/bb-1914/qa-repo --provider codex --prompt "Reply only with ok." --title "1914 origin" --json
bb workflows validate --file /tmp/bb-1914/qa-repo/collect.workflow.js
bb workflows run --file /tmp/bb-1914/qa-repo/collect.workflow.js
bb workflows status wfr_4469d4b6-7bef-4f17-ad96-430190dc103f
bb workflows history wfr_4469d4b6-7bef-4f17-ad96-430190dc103f
bb thread show thr_u982areftg; bb thread log thr_u982areftg --json
sqlite3 <data-dir>/bb.db "select sequence,type from events where thread_id='thr_u982areftg' order by sequence"
# prototype fix
git apply /tmp/bb-reports/issues/1914/repro/prototype-fix.patch; pnpm exec turbo run typecheck --filter=@bb/server; (tests) ; git checkout -- .
# cleanup
pnpm dev:stop; rm -rf ~/.bb-dev/projects-bb-.claude-worktrees-wf_d5c47f31-487-6-484bd182cef1 /tmp/bb-1914
